Product Overview

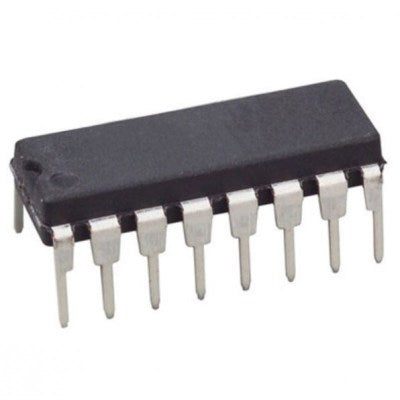

The 74LS47 is a high-performance BCD to 7-segment decoder/driver IC designed to convert binary-coded decimal (BCD) inputs into outputs suitable for driving 7-segment LED displays. This DIP-16 package component is essential for digital display applications, offering reliable performance and industry-standard compatibility.
Key Specifications
| Specification | Details |
| IC Type | BCD to 7-Segment Decoder/Driver |
| Package | DIP-16 (Dual In-line Package) |
| Logic Family | TTL/LS (Low Power Schottky) |
| Input Voltage | 4.75V - 5.25V (Standard TTL) |
| Output Type | Open Collector (Active Low) |
| Temperature Range | 0 degreesC to 70 degreesC (Operating) |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | 24/7 Email & WhatsApp |
Features & Benefits
Perfect Display Control - Directly drives common-anode 7-segment LED displays
BCD Input - Accepts 4-bit binary coded decimal inputs (0-9)
Open Collector Outputs - Flexible output configuration for various applications
Low Power Consumption - LS logic family for efficient operation
Blanking Input - Integrated RBI/RBO pins for display control
Lamp Test Function - Built-in testing capability
Industry Standard - Compatible with legacy and modern circuits
Pin Configuration (DIP-16)
```
Pin 1-4: Input A, B, C, D (BCD Inputs)
Pin 5: RBI (Ripple Blanking Input)
Pin 6-12: Outputs a-g (7-Segment Display)
Pin 8: GND (Ground) Pin 16: VCC (+5V Power)Pin 15: RBO (Ripple Blanking Output)
```Why Choose This Product?
- 100% Authentic - Sourced from authorized distributors with verification
- Fast Shipping - 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
- Expert Support - Technical assistance via email & WhatsApp 24/7
- Trusted Quality - Tested and verified before dispatch
- Competitive Pricing - Best value for authentic components
- Bulk Discounts - Wholesale rates on orders of 10+ units
Applications & Project Ideas
DIY Electronics & Hobbyist Projects
- Digital clock displays
- Frequency counters
- Timer circuits
- Temperature display units
- Custom LED display projects
Educational & Learning
- Electronics labs and experiments
- Microcontroller interfacing tutorials
- Digital logic design projects
- Embedded systems learning
Professional & Industrial
- Industrial control panels
- Test & measurement equipment
- Instrumentation displays
- Legacy system replacements
- Automation circuits
What's Included
74LS47 IC (DIP-16 Package) - 1 Unit
Technical datasheet and pinout diagram
Quick reference guide Warranty documentationSupport contact information
Technical Highlights
- Logic Levels: TTL Compatible (0V = Logic 0, 5V = Logic 1)
- Propagation Delay: ~40ns typical
- Output Current: Up to 40mA per output (open collector)
- Power Supply: Single +5V supply
- Blanking Function: RBI/RBO for cascading and display control
- Lamp Test: LT input for testing all segments
Frequently Asked Questions
Is this 74LS47 100% authentic?
Yes, absolutely. All our ICs are sourced directly from authorized distributors and verified for authenticity before shipment. Each unit comes with manufacturer documentation.
What's the warranty coverage?
Complete 7-day warranty on manufacturing defects covering all manufacturing defects. If the IC fails within this period, we provide replacement or full refund.
How quickly will I receive it?
Standard delivery is 7-8 days to most locations in India from our Bengaluru warehouse. Express options available at checkout.
Can I use this with common-cathode displays?
The 74LS47 is designed for common-anode displays. For common-cathode displays, consider the 74LS48 variant instead. Our support team can help with selection.
What technical support do you provide?
We offer comprehensive support including circuit design help, troubleshooting, application guidance, and datasheet interpretation via email and WhatsApp 24/7.
What's your return policy?
7-day returns on manufacturing defects only with full refund or replacement. applicable on manufacturing defects only. Original packaging preferred for returns.
Do you offer bulk/wholesale pricing?
Yes! Attractive discounts available on orders of 10+ units. Contact our sales team for custom quotes on larger quantities.
Is this suitable for beginners?
Perfect for beginners! The 74LS47 is a fundamental component in digital electronics. Our team provides guidance and support for learning projects.
How to Use
- Supply Power: Connect
