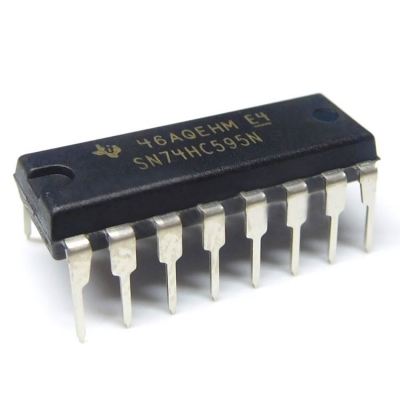

74HC595 8-bit Serial to Parallel Shift Register IC DIP-16 Package
74HC595 8-bit Serial to Parallel Shift Register IC DIP-16 Package
74HC595 8-bit Serial to Parallel Shift Register IC DIP-16 Package
Quality electronics from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, expert support.
Product Overview
The 74HC595 is a high-speed, 8-bit serial-in, parallel-out shift register IC with storage registers and three-state outputs. Perfect for expanding digital output capabilities in microcontroller projects without using additional GPIO pins.
Key Specifications
| Specification | Details |
| Type | 8-bit Serial to Parallel Shift Register |
| Package | DIP-16 (Dual In-line Package) |
| Logic Family | CMOS (74HC Series) |
| Operating Voltage | 2V to 6V DC |
| Output Capability | 8 parallel outputs (Q0-Q7) |
| Shift Rate | Up to 25 MHz |
| Current Per Output | 35mA (typical) |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This Product?
100% Authentic - Sourced from trusted, authorized distributors with verification
Fast Shipping - 1-5 days from Bengaluru warehouse, delivered in 7-8 days to most of India
Expert Support - Technical guidance available round-the-clock
Reliable Quality - Tested and verified before dispatch
Cost-Effective - Expand I/O without expensive microcontroller upgrades
Features & Benefits
- Cascadable Design - Chain multiple ICs for 16, 24, or 32-bit expansion
- Storage Register - Latches data independently from shift register
- Three-State Outputs - Easy integration with bus systems
- Low Power Consumption - CMOS technology for efficient operation
- Wide Voltage Range - Compatible with 3.3V and 5V logic systems
Common Applications
Learning & Education
- Perfect for Arduino, Raspberry Pi, and PIC microcontroller projects
- Ideal for digital electronics coursework and skill development
- Great for understanding shift register concepts
DIY Electronics
- LED matrix control and multiplexing
- 8-channel relay driver modules
- Display driver circuits
- Digital counter displays
Professional Applications
- Industrial control systems
- Automated testing equipment
- Data acquisition systems
- Communication interfaces
Pin Configuration
| Pin | Function |
| 1 | Q1 (Output) |
| 2 | Q2 (Output) |
| 3 | Q3 (Output) |
| 4 | Q4 (Output) |
| 5 | Q5 (Output) |
| 6 | Q6 (Output) |
| 7 | Q7 (Output) |
| 8 | GND (Ground) |
| 9 | Q7' (Serial Out) |
| 10 | MR (Master Reset) |
| 11 | SH_CP (Shift Clock) |
| 12 | ST_CP (Storage Clock) |
| 13 | OE (Output Enable) |
| 14 | DS (Serial Input) |
| 15 | Q0 (Output) |
| 16 | VCC (Power Supply) |
What's in the Box
1x 74HC595 DIP-16 IC
Product datasheet and documentation
Technical support contact information
Secure packaging for safe delivery
Technical Support & Documentation
- Datasheet Available - Complete pinout and timing diagrams
- Application Notes - Ready-to-use circuit examples
- Code Samples - Arduino and other microcontroller libraries
- Expert Assistance - Troubleshooting and integration help
Frequently Asked Questions
Is this 100% authentic?
Yes, all our ICs are sourced directly from authorized distributors with full authentication verification. Each batch is tested for quality assurance.
What warranty coverage is included?
Full 7-day warranty on manufacturing defects covering all manufacturing defects. We also provide 7-day replacement guarantee for DOA (Dead On Arrival) units.
How quickly can I receive this?
Standard shipping is 7-8 days to most of India from our Bengaluru warehouse. Express options available for urgent orders.
Can I chain multiple 74HC595 ICs together?
Yes! The Q7' output allows cascading. You can connect unlimited ICs in series to control 16, 24, 32, or more output pins.
What microcontrollers is this compatible with?
The 74HC595 works with Arduino, Raspberry Pi, ESP8266, STM32, PIC, and any microcontroller with 3.3V or 5V logic outputs.
Is technical support available?
Yes, we provide 24/7 technical support via email and WhatsApp. Our engineers can help with circuit design, coding, and troubleshooting.
What's your return and refund policy?
7-day returns on manufacturing defects only with full refund or replacement. applicable on manufacturing defects only for DOA units within warranty period.
Do you offer bulk/wholesale pricing?
Yes! Bulk discounts available on orders of 10+ units. Contact our sales team for custom quotes on large quantities.
