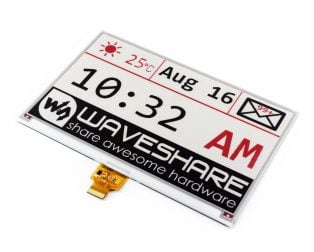

7.5-inch E-Ink Paper display HAT for Raspberry Pi
7.5-inch E-Ink Paper display HAT for Raspberry Pi
Shipping calculated at checkout.
7.5-inch E-Ink Paper display HAT for Raspberry Pi
This is an E-Ink display HAT for Raspberry Pi, 7.5-inch, 640x384 resolution, with an embedded controller, communicating via SPI interface. This display shows the data on the screen as same as it seen on printed paper.
There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn't need a continuous power supply to display the (static data with periodic intervals) data on the screen,
The Display it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.
Why Choose 7.5-inch E-Ink Paper display HAT for Raspberry Pi?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 7.5-inch E-Ink Paper display HAT for Raspberry Pi
- No backlight keeps displaying last content for a long time even when poweris down
- Ultra low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
- SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Perfect For
- Single-board computing projects
- Home automation
- Iot gateways
- Media centers and robotics
- Student and hobbyist projects
Package Includes:
1 x7.5-inch E-Ink Paper display HAT for Raspberry Pi
1 x e-paper Hat for Raspberry Pi to e-paper Adapter
1 x Interfacing Cable
1 x Nut-Bolt and Spacers set
Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, high active |
Useful Link:
Wiki:www.waveshare.com/wiki/7.5inch_e-Paper_HAT
