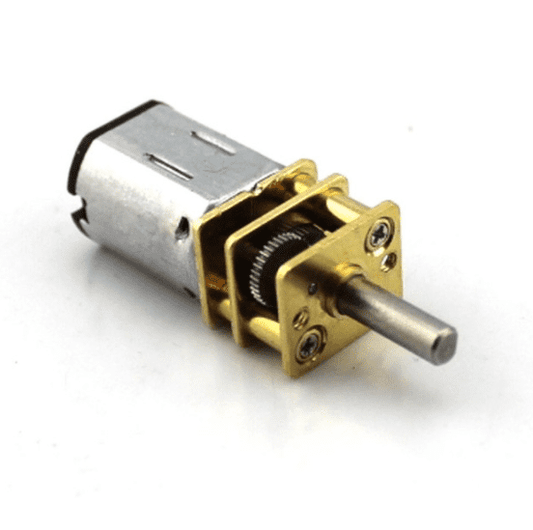

6V N20 600 RPM Miniature Gear Motor
6V N20 600 RPM Miniature Gear Motor
6V N20 600 RPM Miniature Gear Motor
Compact, high-torque N20 micro gear motor rated at 6V with 600 RPM output - ideal for robotics, smart car projects, and precision mechanisms. From The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Motor Type | N20 DC Micro Gear Motor |
| Rated Voltage | 6V DC |
| No-Load Speed | ~600 RPM |
| Gear Ratio | Metal gearbox (high reduction) |
| Shaft Diameter | 3mm (D-shaped) |
| Motor Body Size | ~12mm x 10mm x 25mm (N20 standard) |
| Operating Voltage Range | 3V - 9V DC (rated 6V) |
| Stall Current | ~800mA (at 6V) |
| No-Load Current | ~60mA (at 6V) |
| Stall Torque | ~0.3 kgcm (at 6V) |
| Gear Material | Metal gears for durability |
| Weight | ~10g |
| Rotation | Reversible (swap polarity) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Optimized 600 RPM speed: Balanced speed-to-torque ratio perfect for wheeled robots, pan-tilt mechanisms, and conveyor models
- Ultra-compact N20 form factor: Fits easily into tight enclosures, 3D-printed chassis, and miniature assemblies
- Durable metal gearbox: Metal gear train withstands higher loads and lasts significantly longer than plastic-geared alternatives
- 3mm D-shaft compatibility: Works directly with standard N20 wheels, couplers, and mounting brackets
- Wide voltage flexibility: Runs from 3V to 9V - use lower voltage for slower speed or higher voltage for extra power
- Easy motor driver integration: Pairs perfectly with L298N, DRV8833, TB6612, and L293D motor driver modules
- 100% authentic from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse
- Expert technical support included with every purchase
Project Ideas
- Line-Following Robot: Mount two N20 motors with wheels on a compact chassis for a fast, responsive line-follower controlled by Arduino or ESP32.
- Bluetooth / WiFi Smart Car: Build a smartphone-controlled mini car using this motor with an L298N driver and HC-05 Bluetooth or ESP8266 WiFi module.
- Robotic Arm Gripper: Use the motor with a worm gear or lead screw to create a precise open/close gripper mechanism for small robotic arms.
- Automated Camera Pan/Tilt: Drive a lightweight pan-tilt bracket for FPV cameras or surveillance setups with smooth, controlled rotation.
- Conveyor Belt Model: Power a miniature conveyor system for factory automation demonstrations or sorting machine prototypes.
- Obstacle-Avoiding Robot: Combine with ultrasonic sensors and an Arduino to build an autonomous navigation bot for competitions and learning.
- Educational STEM Kits: Excellent for teaching DC motor principles, gear ratios, PWM speed control, and H-bridge circuits to students.
- Automatic Door/Gate Model: Create a scaled-down automatic sliding door or gate mechanism for smart home demonstration projects.
What's in the Box
- 1 x 6V N20 600 RPM Miniature Gear Motor
- Pre-soldered leads (where applicable) for easy wiring
- Documentation and technical support access
Frequently Asked Questions
Is this 100% authentic?
Yes, sourced directly from authorized distributors. Every unit is tested and authentication verified before shipping.
What is the difference between 600 RPM and other N20 variants?
The RPM rating reflects the gear ratio inside the gearbox. A 600 RPM motor offers a balanced middle ground - faster than 100-300 RPM variants (which have higher torque) and slower than 1000+ RPM variants (which have lower torque). Choose 600 RPM when you need both reasonable speed and decent torque for wheeled robots and mechanisms.
Can I run this motor at 3V or 9V instead of 6V?
Yes. At 3V the motor runs slower (~300
