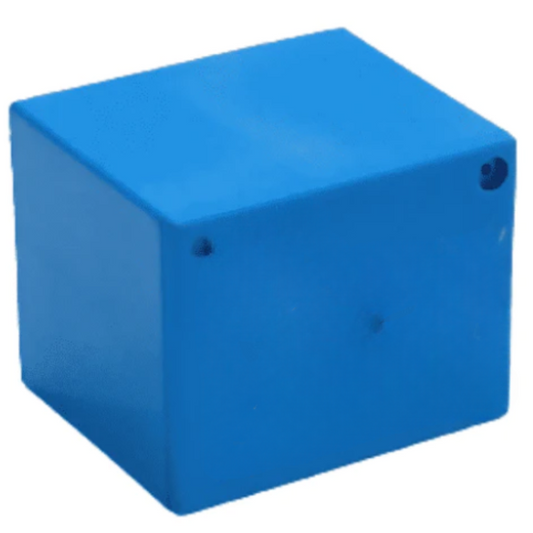

5V 10A PCB Mount Sugar Cube Relay - SPDT
A compact, reliable sugar cube relay rated for 5V coil voltage and 10A switching capacity. This SPDT (Single Pole Double Throw) relay features a small PCB-mount footprint, making it ideal for microcontroller-driven switching in Arduino, Raspberry Pi, ESP32, and IoT projects. Premium electronics from Tech Depot India, Bengaluru.
Specifications
| Relay Type | SPDT (Single Pole Double Throw) - Sugar Cube |
| Coil Voltage | 5V DC |
| Contact Rating | 10A @ 250V AC / 10A @ 30V DC |
| Contact Configuration | 1 NO (Normally Open) + 1 NC (Normally Closed) + 1 COM (Common) |
| Coil Resistance | ~70Ohm (typical) |
| Coil Current | ~71mA |
| Operate Time | <=10ms |
| Release Time | <=5ms |
| Insulation Resistance | >=100MOhm (at 500V DC) |
| Dielectric Strength | >=1500V AC (between coil and contacts) |
| Mechanical Life | 10,000,000 operations (no load) |
| Electrical Life | 100,000 operations (at rated load) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Dimensions (approx.) | 19mm x 15.5mm x 15.5mm |
| Mounting | Through-hole PCB mount (5-pin) |
| Pin Pitch | Standard 2.54mm compatible |
| Weight | ~10g |
| Origin | Original/Authentic |
| Warranty | |
| Support | Email & WhatsApp reliable |
Pin Configuration
| Pin 1 | Coil (+) |
| Pin 2 | Coil () |
| Pin 3 | COM (Common) |
| Pin 4 | NO (Normally Open) |
| Pin 5 | NC (Normally Closed) |
Key Features
- Compact Sugar Cube Form Factor: Ultra-small footprint saves valuable PCB real estate in space-constrained designs
- 5V Coil Compatibility: Directly compatible with Arduino, Raspberry Pi, ESP32, STM32, and other popular 5V microcontroller platforms
- High 10A Switching Capacity: Capable of switching mains-powered appliances, motors, heaters, and lighting up to 250V AC at 10A
- SPDT Configuration: Three-terminal output (COM, NO, NC) enables both normally open and normally closed switching logic in a single relay
- Long Mechanical Life: Rated for 10 million mechanical operations ensuring years of reliable service
- Wide Operating Temperature: Functions reliably from -40 degreesC to +85 degreesC for industrial and outdoor applications
- Low Coil Power Consumption: Approximately 355mW coil power draw, easily driven through a transistor or MOSFET driver circuit
- Through-Hole PCB Mount: Standard 5-pin through-hole design for easy hand soldering and wave soldering compatibility
- Audible Click Feedback: Produces a distinct click sound on activation, useful for confirming relay state during testing and debugging
- RoHS Compliant: Lead-free construction meets international environmental standards
Why Choose This Relay?
- 100% authentic from trusted relay manufacturers - no counterfeit or recycled components
- Individually tested for coil activation and contact continuity before dispatch
- The most popular relay for Arduino and microcontroller projects - massive community support and tutorials available
- Expert technical support included - we help you design your driver circuit and troubleshoot
- Competitive pricing with bulk discounts available for production runs
How It Works
A sugar cube relay is an electromechanical switch. When a 5V DC signal is applied across the coil pins, the coil generates a magnetic field that pulls an internal armature, mechanically switching the COM (Common) terminal from the NC (Normally Closed) contact to the NO (Normally Open) contact. When the coil is de-energized, a spring returns
