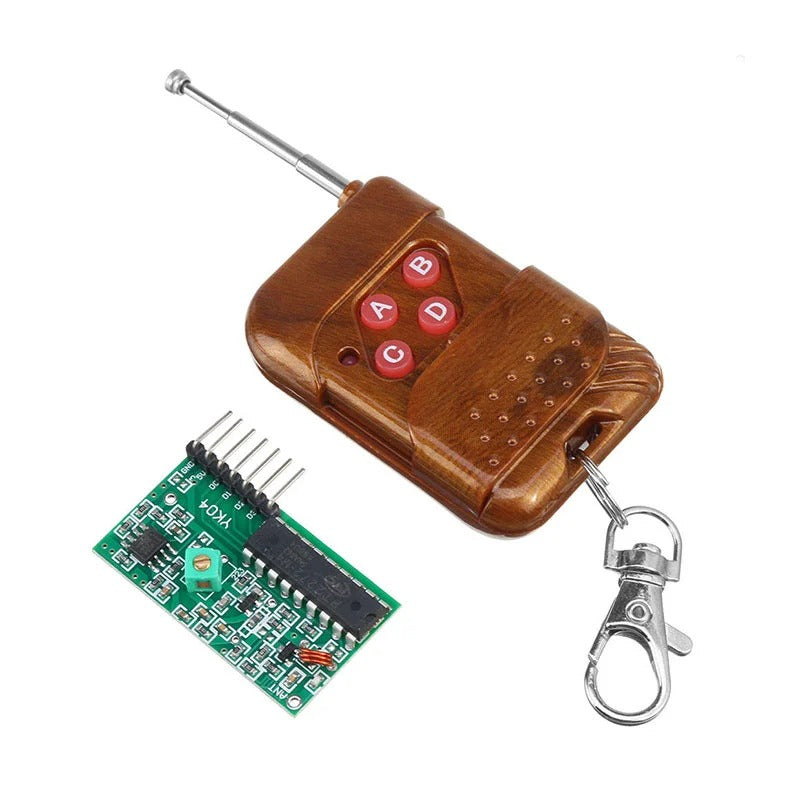

4CH Remote Control Transmitter Receiver WITH PACKING
4CH Remote Control Transmitter Receiver WITH PACKING
4CH Remote Control Transmitter Receiver WITH PACKING
Complete Wireless Control Solution for Multi-Channel Projects
Take full wireless command of your projects with this 4-Channel Remote Control Transmitter and Receiver Kit, delivered in complete retail packing with everything you need to get started. This versatile RF module set enables you to wirelessly control up to four independent devices or channels from a convenient handheld transmitter, making it ideal for robotics, home automation, industrial control, and countless DIY applications.
Key Features
- 4 Independent Channels: Control up to four separate outputs simultaneously or individually
- Long Operating Range: Reliable wireless communication over extended distances (typically 50-100+ meters in open areas)
- Simple Pairing: Easy-to-use learning code or fixed code system for quick setup
- Compact Transmitter: Ergonomic handheld remote with clearly labeled buttons for each channel
- Versatile Receiver Board: Onboard relay outputs or logic-level outputs for flexible integration
- Multiple Operating Modes: Supports momentary, toggle, and latching modes for diverse applications
- Low Power Consumption: Efficient RF circuitry ensures long battery life for the transmitter
- Secure Signal Encoding: Encoded transmission prevents interference and unauthorized control
- LED Indicators: Visual feedback on both transmitter and receiver for signal confirmation
- Complete Retail Packing: Arrives professionally packaged with all components and accessories included
Specifications
| Parameter | Detail |
| Channels | 4 (Independent) |
| Frequency | 315 MHz / 433 MHz RF |
| Receiver Operating Voltage | DC 12V (typical, check specific model) |
| Transmitter Power | 12V 23A battery (included in packing) |
| Range | 50-100+ meters (open area, line of sight) |
| Output Type | Relay / Logic Level |
| Relay Rating | 10A @ 250V AC / 10A @ 30V DC (per channel) |
| Operating Modes | Momentary / Toggle / Latching |
| Encoding | Learning Code / Fixed Code |
| Receiver Dimensions | Compact PCB module |
| Transmitter Type | Handheld 4-button keyfob |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Antenna | Spring coil / wire antenna included |
| Packing | Complete retail box with all accessories |
| Type | RF Wireless Control Module Kit |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
What's in the Box
- 1 x 4-Channel Receiver Module Board
- 1 x 4-Button Remote Control Transmitter (Keyfob)
- 1 x Antenna (for receiver, if external)
- 1 x Battery for Transmitter (23A 12V, pre-installed or included)
- 1 x Wiring/Connection Guide
- Complete retail packaging with documentation and support materials
How It Works
The system operates using radio frequency (RF) communication between the handheld transmitter and the receiver board:
- Transmitter: When you press one of the four buttons on the remote, it sends a uniquely encoded RF signal corresponding to that channel
- Receiver: The receiver module picks up the signal via its antenna, decodes it, and activates the corresponding relay or output channel
- Output Control: Each channel's relay can switch lights, motors, solenoids, door locks, or any electrical load within the relay's rated capacity
- Mode Selection: Depending on configuration, outputs can operate in momentary (active only while button is held), toggle (press once ON, press again OFF), or latching mode
Operating Modes Explained
| Mode | Behavior | Best For |
| Momentary | Output active only while button is pressed | Horns, momentary triggers, jogging motors |
| Toggle | Each press alternates ON/OFF state | Lights, fans, appliances |
| Latching | Press one button ON, press another OFF | Gate openers, industrial machinery |
Pin / Connection Layout
Receiver Board Typical Connections
``` 4CH RECEIVER MODULE[VCC] [GND] Power Input (12V DC)
[CH1] Relay 1 (NO / COM / NC) [CH2] Relay 2 (NO / COM / NC) [CH3] Relay 3 (NO / COM / NC) [CH4] Relay 4 (NO / COM / NC) [ANT] Antenna Wire[LEARN] Learning/Pairing Button
[LED] Status Indicator Relay Terminal Legend: NO = Normally Open COM = Common NC = Normally Closed ```Relay Wiring (Per Channel)
``` NO To Load (+) 12V COM Load NC (Alternative connection) GND To Load (-) ```Pairing / Learning Process
- Power the receiver with 12V DC supply
- Press the LEARN button on the receiver board - the LED will light up or blink
- Press any button on the transmitter - the receiver LED will flash to confirm successful pairing
- Repeat for additional remotes if needed (most receivers support multiple transmitters)
- To clear memory: Press and hold the LEARN button
