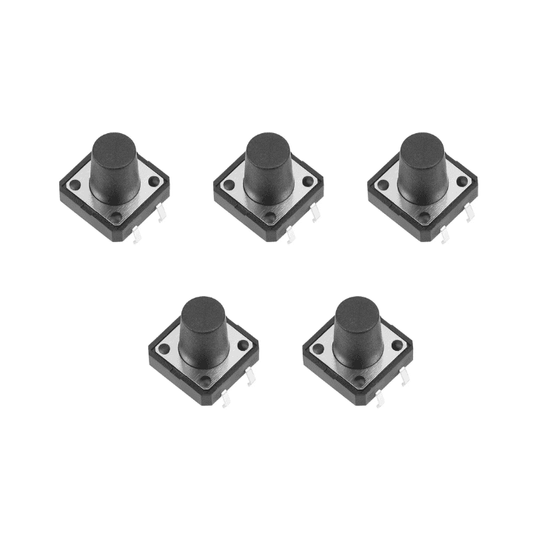

4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm
4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm
4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm
Get a pack of 5 high-quality 12x12x12mm tactile push button switches, perfect for breadboard prototyping, PCB projects, and DIY electronics. These momentary, normally-open switches feature a satisfying tactile click, 4-pin DIP through-hole mounting, and a compact square design that fits standard 2.54mm pitch layouts. Available from The Tech Depot, Bengaluru with fast shipping and dedicated support.
Specifications
| Switch Type | Momentary Tactile Push Button (Normally Open) |
| Dimensions | 12mm x 12mm x 12mm (L x W x H including button cap) |
| Pin Configuration | 4-Pin DIP Through-Hole |
| Pin Pitch | 2.54mm (standard breadboard compatible) |
| Contact Rating | 50mA @ 12V DC (typical) |
| Contact Resistance | <=100mOhm |
| Insulation Resistance | >=100MOhm |
| Operating Force | ~160-260gf (tactile feedback) |
| Mechanical Life | 100,000+ cycles |
| Operating Temperature | -25 degreesC to +70 degreesC |
| Mounting Style | Through-Hole / DIP |
| Body Shape | Square |
| Quantity | 5 Pieces per Pack |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Breadboard & PCB Friendly: 4-pin DIP configuration with 2.54mm pitch slots directly into breadboards and standard PCB footprints without adapters
- Reliable Tactile Feedback: Crisp, audible click confirms every press - ideal for user input, reset buttons, and menu navigation
- 12mm Tall Profile: The extended 12mm height provides a comfortable button surface that protrudes well above enclosure panels for easy access
- Durable Construction: Rated for 100,000+ actuations with gold-plated or silver-alloy contacts for consistent low-resistance switching
- Value 5-Pack: Multiple switches in one pack so you have spares for prototyping iterations or multi-button projects
- 100% Authentic: Sourced from trusted component suppliers - no counterfeits or rejects
- Fast Delivery: 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
Key Features
- Momentary action - circuit closes only while the button is pressed, returns to open on release
- 4-pin design with internally shorted pairs for secure, stable PCB mounting
- Compact 12x12mm square footprint saves board space while remaining finger-friendly
- Compatible with 3.3V and 5V logic circuits (Arduino, ESP32, Raspberry Pi, STM32, and more)
- Solderable through-hole leads for permanent PCB installation
- Can be used with standard square button caps (sold separately) for color-coded interfaces
Project Ideas
- Arduino & Microcontroller Inputs: Use as start, stop, reset, or mode-select buttons in Arduino, ESP32, STM32, and Raspberry Pi Pico projects with simple pull-up or pull-down resistor circuits
- Menu Navigation Panels: Build multi-button interfaces for LCD/OLED menu systems - up, down, select, and back controls
- DIY Game Controllers: Create retro gaming pads, quiz buzzers, or reaction-time testers with satisfying tactile response
- Reset & Boot Switches: Add manual reset or boot-mode selection buttons to custom PCBs and development boards
- Home Automation Panels: Integrate into wall-mount control panels for smart home lighting, fans, or appliance toggling
- Educational Kits: Teach digital logic, debouncing techniques, interrupt handling, and basic circuit design to students and beginners
- Test Jigs & Instruments: Incorporate into lab equipment, signal generators, or calibration tools as function-select inputs
How to Use
- Breadboard: Insert the 4 pins into the breadboard straddling the center channel. Connect one side to your microcontroller GPIO pin (with a 10kOhm pull-up or pull-down resistor) and the other side to GND or VCC
- PCB Soldering: Place into a 12x12mm tactile switch footprint, solder all 4 pins for mechanical stability and electrical connection
- Software Deb
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
