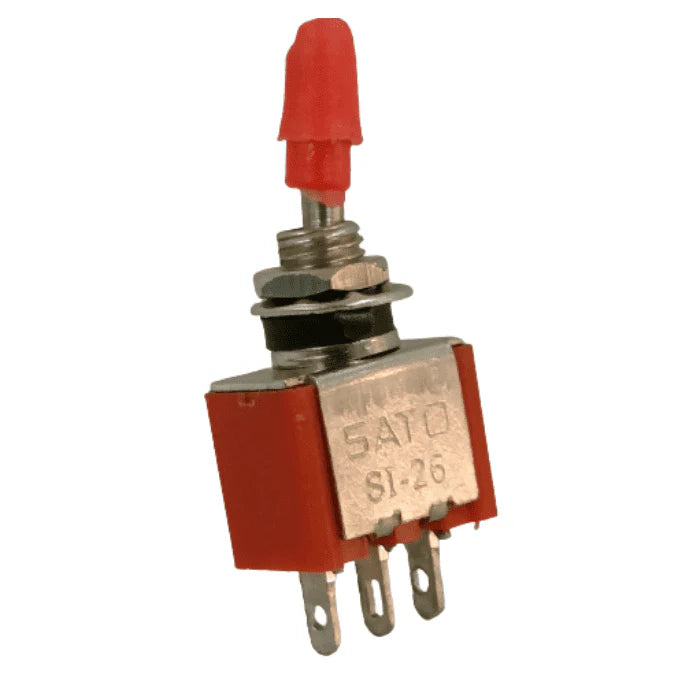

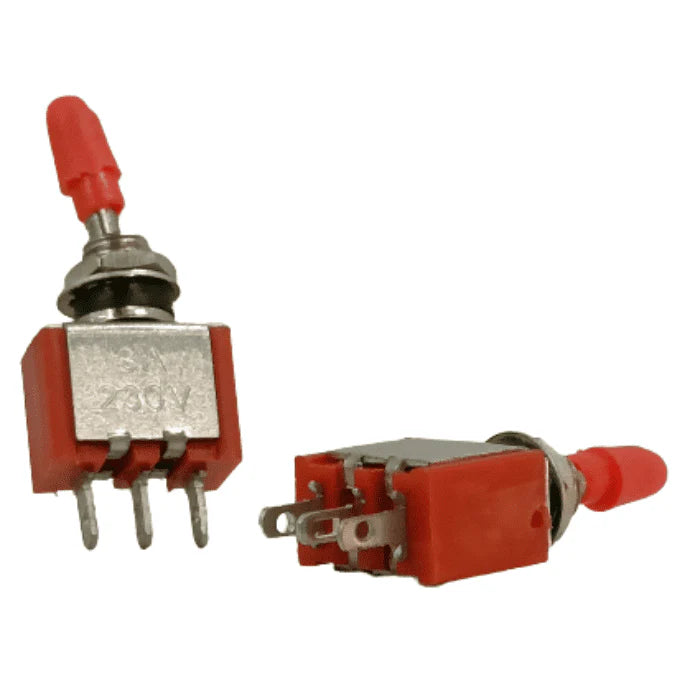

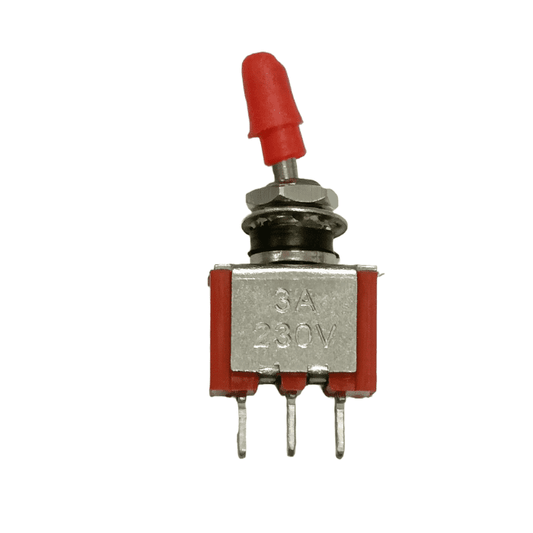

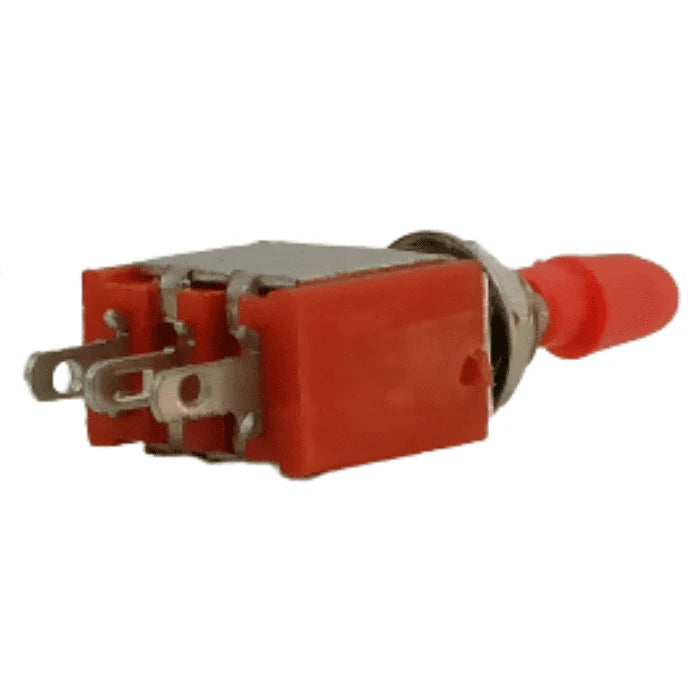

3 Pin Toggle Switch (3A 230V)
3 Pin Toggle Switch (3A 230V)
3 Pin Toggle Switch (3A 230V)
Reliable 3-pin toggle switch rated at 3A 230V from The Tech Depot, Bengaluru. Ideal for AC power control, panel switching, and appliance circuits. Features a sturdy metal lever with satisfying snap-action mechanism for secure ON/OFF operation. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Component Type | Toggle Switch - 3 Pin (SPDT) |
| Current Rating | 3A |
| Voltage Rating | 230V AC |
| Number of Pins | 3 (Common, NO, NC) |
| Switch Configuration | SPDT (Single Pole Double Throw) |
| Contact Action | Snap-Action (ON-OFF-ON / ON-OFF) |
| Actuator Type | Metal Toggle Lever |
| Mounting Style | Panel Mount (with threaded bushing & nut) |
| Mounting Hole Diameter | ~6mm (standard) |
| Terminal Type | Solder Lug / PCB Pin |
| Contact Material | Silver Alloy |
| Housing Material | Durable Plastic / Bakelite Body |
| Insulation Resistance | >=100MOhm |
| Dielectric Strength | >=1500V AC (1 minute) |
| Mechanical Life | ~10,000 cycles |
| Operating Temperature | -20 degreesC to +85 degreesC |
| Weight | ~5-8g |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 230V AC Rated: Safely handles mains voltage for household and industrial switching applications
- 3A Current Capacity: Controls loads up to 690W at 230V AC - suitable for lights, fans, small appliances, and motor circuits
- 3-Pin SPDT Configuration: Common, Normally Open (NO), and Normally Closed (NC) terminals allow versatile ON-OFF or changeover switching
- Snap-Action Mechanism: Positive tactile click ensures definitive switching with no ambiguous mid-positions
- Sturdy Metal Toggle Lever: Durable actuator provides firm grip and long-term reliability
- Panel Mount Design: Threaded bushing with hex nut for clean, secure installation in enclosures and control panels
- Compact Form Factor: Standard miniature toggle size fits easily into tight spaces and project enclosures
- Silver Alloy Contacts: Low contact resistance ensures efficient power transfer and minimal heat generation
- High Insulation Resistance: Safe isolation between circuits meets standard safety requirements
- Wide Temperature Range: Operates reliably from -20 degreesC to +85 degreesC for diverse environments
Pin Configuration & Wiring
| Pin | Label | Function |
| Pin 1 (Top) | Terminal A (NO or Load 1) | Connected to Common when toggle is flipped UP |
| Pin 2 (Center) | Common (C) | Input / supply connection - always connected to one of the outer pins |
| Pin 3 (Bottom) | Terminal B (NC or Load 2) | Connected to Common when toggle is flipped DOWN |
Wiring Tips:
- Simple ON/OFF: Connect supply to Center (Common) pin and load to one outer pin - leave the other outer pin unconnected
- Changeover / Selector: Connect supply to Center pin and two different loads to each outer pin to switch between them
- Always switch the LIVE wire through the toggle for safety - never switch only the neutral
- Use appropriate gauge wire (minimum 0.5mm2 for 3A) and ensure all solder joints or crimps are secure
Why Choose This?
- 100% authentic from trusted suppliers - no counterfeit or substandard components
- 230V AC rated for safe mains-voltage switching unlike low-voltage-only alternatives
- Versatile SPDT 3-pin design supports both simple ON/OFF and changeover applications
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse to most of India
- Expert technical support included for wiring guidance and circuit design
- Ideal balance of compact size, robust construction,
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
