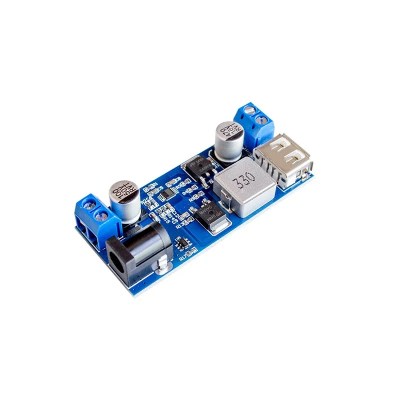

24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter
24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter
24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter
Quality electronics from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, expert support.
Specifications
| Feature | Details |
| Input Voltage | 12V-24V DC |
| Output Voltage | 5V DC |
| Output Current | 5A (Max) |
| Power Output | 25W |
| Module Type | Buck Converter (Step-Down) |
| Efficiency | 95%+ |
| Protection | Over-current & Over-temperature |
| Operating Temp | -40 degreesC to +85 degreesC |
| Size | Compact (approx. 50x35x20mm) |
| Type | Electronics Component |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
100% Authentic - Sourced from trusted authorized distributors with verification
Fast Shipping - 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
Expert Support - 24/7 technical assistance via email & WhatsApp
Reliable Performance - 95%+ efficiency with built-in protections
Wide Compatibility - Works with 12V and 24V systems
Compact Design - Space-saving form factor for tight installations
Key Features
- Wide Input Range: Accepts both 12V and 24V DC sources
- High Current Output: Delivers stable 5A at 5V for power-hungry devices
- Protection Circuits: Over-current and over-temperature safeguards
- Stable Regulation: Maintains consistent 5V output despite input variations
- Industrial Grade: Suitable for harsh environments (-40 degreesC to +85 degreesC)
- Low Heat Dissipation: Efficient design with minimal thermal output
Project Ideas
DIY Electronics Projects
- Arduino & Raspberry Pi power supplies
- USB device charging stations
- LED strip controllers
- IoT sensor modules
Professional Applications
- Industrial automation systems
- Automotive electronics
- Security camera systems
- Telecom backup power
Learning & Education
- Electronics lab experiments
- Embedded systems projects
- Power supply design studies
- Student engineering projects
What's in the Box
1x XY-3606 DC-DC Power Module
Technical documentation & datasheet
Customer support contact information
Installation guide & connection diagram
Technical Details
Input Protection: Reverse polarity protection recommended
Output Ripple: <100mV (typical)
Load Regulation: +/-2%
Line Regulation: +/-1%
Switching Frequency: ~340kHz
Mounting: PCB or bracket mount options
Frequently Asked Questions
Is this 100% authentic?
Yes, absolutely. We source exclusively from authorized distributors with authentication verification. Every unit is tested before shipment.
What warranty coverage is included?
7-day warranty on manufacturing defects covering all manufacturing defects. Covers component failure, not physical damage from misuse.
How fast is the shipping?
1-5 day shipping, 7-8 day delivery to most locations in India from our Bengaluru warehouse. Express options available for urgent orders.
Do you provide technical support?
Yes, full technical support available 24/7 via email and WhatsApp. Our engineers can help with installation, troubleshooting, and circuit design questions.
What is your return policy?
7-day returns on manufacturing defects only with full refund or replacement. Buyer pays return shipping unless product is faulty.
Are bulk discounts available?
Yes! Wholesale pricing available on orders of 10+ units. Contact our sales team for custom quotes.
Can this handle 24V input continuously?
Yes, the XY-3606 is rated for continuous 24V input. However, ensure proper cooling if operating at maximum current for extended periods.
What devices can I power with this?
Any 5V device requiring up to 5A: USB devices, microcontrollers, LED systems, sensors, small motors, etc.
