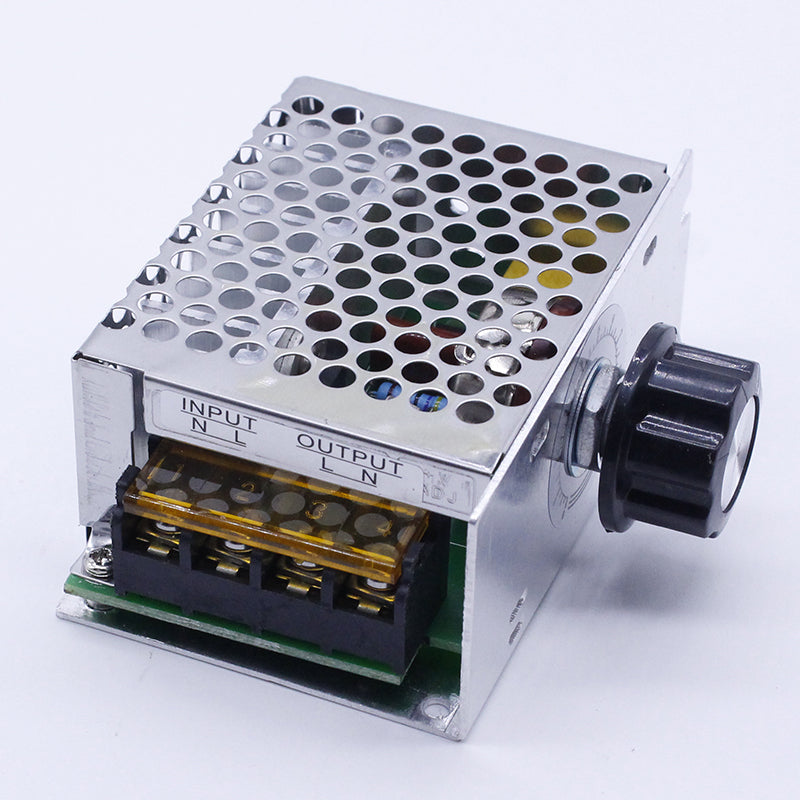

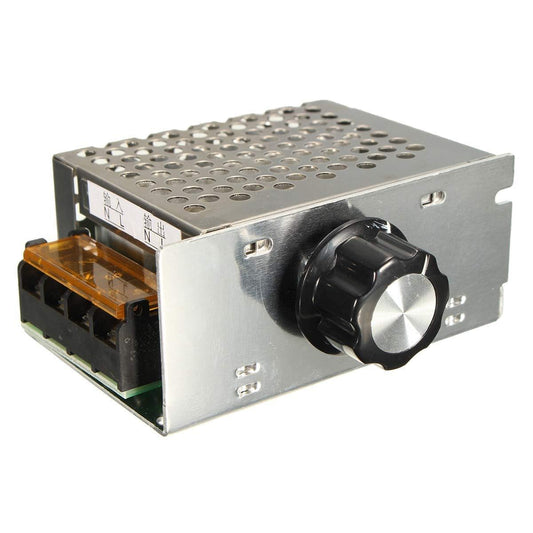

220V 4000W SCR Voltage Regulator
Take precise control of AC power with this high-capacity 220V 4000W SCR Voltage Regulator. Designed for demanding applications like motor speed control, heater temperature adjustment, and light dimming, this compact module handles up to 4000 watts of power with smooth, stepless regulation.
Specifications
| Module Type | SCR (Thyristor) AC Voltage Regulator / Dimmer |
| Input Voltage | AC 220V (50/60Hz) |
| Maximum Power Rating | 4000W |
| Maximum Current | ~18A |
| Regulation Method | Phase-angle control (stepless adjustment) |
| Control Element | High-power SCR / Thyristor |
| Adjustment | Rotary potentiometer knob |
| Output Voltage Range | ~0V - 220V AC (adjustable) |
| Heatsink | Integrated aluminum heatsink |
| Terminal Connections | Screw terminals for input and output |
| Board Dimensions | Approx. 67mm x 57mm x 42mm (compact form factor) |
| Operating Temperature | -10 degreesC to +60 degreesC |
| Compatible Loads | Resistive loads (heaters, incandescent bulbs, soldering irons); universal motors with caution |
| Origin | Original / Authentic |
| Warranty | |
| Support | Email & WhatsApp reliable |
Key Features
- 4000W High-Power Handling: Regulates loads up to 4000 watts at 220V AC, suitable for heavy-duty heaters, large incandescent lighting arrays, and high-wattage tools.
- Stepless Voltage Adjustment: Smooth rotary potentiometer lets you dial output voltage from near-zero to full line voltage with fine, continuous control.
- SCR Phase-Angle Control: Uses proven thyristor-based phase-angle regulation for efficient, reliable power modulation without bulky transformers.
- Integrated Aluminum Heatsink: Built-in heatsink dissipates heat during sustained high-power operation, maintaining stable performance and extending component life.
- Compact & Easy to Wire: Small PCB footprint with clearly labeled screw terminals makes installation fast-simply connect AC input and load output.
- Wide Application Range: Control temperature on electric heaters and furnaces, adjust brightness on incandescent or halogen lights, regulate speed on universal (brushed) motors, and manage soldering station heat.
- Tech Depot India Build Quality: Quality PCB with thick copper traces, rated SCR components, and protective design elements ensure durability under continuous use.
Why Choose This?
- 100% authentic module sourced from trusted, verified suppliers
- Expert technical support to help you size and wire the regulator correctly
- Ideal balance of power capacity, compact size, and affordability for both hobbyists and professionals
- Proven SCR topology trusted in thousands of industrial and DIY installations worldwide
Project Ideas
- Electric Heater Temperature Controller: Wire inline with a room heater, ceramic heater, or heat gun to dial in the exact temperature you need-no more on/off cycling.
- Incandescent & Halogen Dimmer: Build a custom light dimmer for workshop lighting, photography setups, or stage lights with smooth brightness control up to 4000W.
- Soldering Iron Heat Regulator: Pair with a basic soldering iron to create a variable-temperature soldering station on a budget-essential for delicate PCB work.
- Universal Motor Speed Control: Adjust the speed of brushed AC motors in power tools like drills, routers, and fans for precise material processing.
- Kiln & Furnace Controller: Regulate heating elements in small pottery kilns, heat-treatment furnaces, or reflow setups for controlled thermal profiles.
- Educational Demonstrations: Teach AC power regulation, SCR operation, and phase-angle control concepts with a hands-on, affordable module in the classroom or lab.
What's in the Box
- 1 x 220V 4000W SCR Voltage Regulator Module (with integrated heatsink and potentiometer knob)
- Documentation and wiring reference materials
Important Safety & Usage Notes
- Mains Voltage - Exercise Caution: This module operates at 220V AC. All wiring and handling must be performed by qualified individuals with power disconnected.
- Resistive
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
