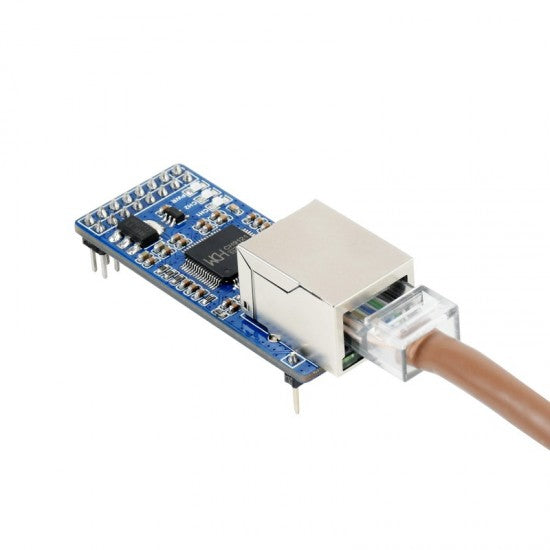

2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module
2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module
2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module
The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on.
Features
- Embedded Ethernet MAC and PHY layers
- Bi-direction transparent data transmission between UART and Ethernet
- 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant
- Auto-MDI/MDIX, detect and switch cable type automatically
- Supports DHCP auto-obtained IP and DNS domain access
- Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
- Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
- 2-CH UART concurrent operation, standalone transparent transmission for each channel
- Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch
- Supports virtual serial port software (provided)
- KEEPALIVE mechanism support
- Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
Resources
User Manual
Specifications
| OPERATING VOLTAGE | 3.3V/5V | OPERATING CURRENT | 140mA |
|---|---|---|---|
| OPERATING MODE | TCP/UDP | UART BAUDRATE | 300bps ~ 921.6Kbps |
| UART TTL LEVEL | 3.3V / 5V compatible | STORAGE TEMPERATURE | -55 ~ 125 |
| OPERATING TEMPERATURE | -40 ~ 85 | DIMENSIONS | 53.00 x 22.00mm |
Onboard Peripherals
- UART 1 connection status indicator
- UART 2 connection status indicator
- Power indicator
- CH9121 control pins
- CH9121 driver
- AMS1117-3.3V power supply IC
- RT9193-18GB power supply IC
- Ethernet port
Pinouts
| 5V / 3V3 | power positive, use any pin of 5V/3.3V pins for power supply |
| GND | ground |
| RST1 | external reset input, low active |
| RESET | restore to factory setting, detected when chip poweron, low active |
| TXD1 | asynchronous UART 1 data output (enabled by default) |
| TXD2 | asynchronous UART 2 data output(disabled by default) |
| RXD1 | asynchronous UART 1 data input (enabled by default) |
| RXD2 | asynchronous UART 2 data input(disabled by default) |
| CFG0 | UART config mode, low level to enter configuration, high level to exit configuration |
| RUN | Operating status indicating pin |
| DIR1 | UART 1 RS485 RX/TX switch (connects to external RS485 controller) |
| DIR2 | UART 2 RS485 RX/TX switch (connects to external RS485 controller) |
