2-Ch RS485 to RJ45 Ethernet Serial Server - Dual Channel Independent Operation with POE Ethernet Port
Bridge your RS485 serial devices to modern Ethernet networks with this industrial-grade dual-channel RS485 to RJ45 Ethernet serial server. Featuring Power over Ethernet (POE) support and two independently operating RS485 channels, this converter eliminates complex wiring and enables seamless remote monitoring and control of serial devices over TCP/IP networks. Available at Tech Depot India, Bengaluru - trusted by engineers, integrators, and automation professionals across India.
Key Features
- Dual Independent RS485 Channels: Two RS485 serial ports operate independently, allowing simultaneous communication with separate serial devices without interference.
- POE Ethernet Port (RJ45): Power over Ethernet support enables single-cable installation - receive both data connectivity and power through one Ethernet cable, reducing wiring complexity.

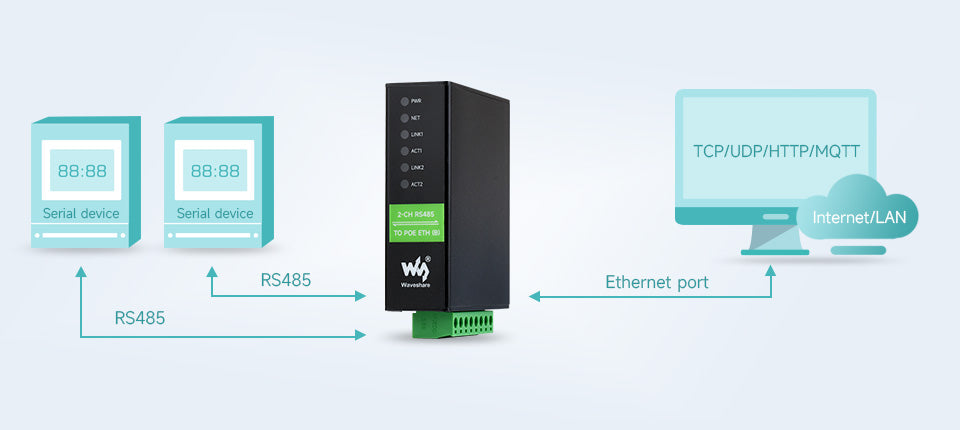

- Transparent Serial-to-Ethernet Conversion: Seamlessly converts RS485 serial data to TCP/IP Ethernet packets and vice versa for remote device access over LAN or WAN.
- Multiple Working Modes: Supports TCP Server, TCP Client, UDP, and virtual COM port modes for flexible integration into diverse network architectures.
- Web-Based Configuration: Built-in web interface for easy parameter setup including IP address, baud rate, data bits, parity, and protocol settings - no special software required.
- Industrial-Grade Reliability: Designed for reliable continuous operation in demanding environments with wide operating temperature range and robust surge protection.
- Auto-Reconnect & Heartbeat: Automatic reconnection mechanism and heartbeat detection ensure stable, uninterrupted communication links.
- Compact DIN-Rail / Wall-Mount Design: Space-efficient enclosure suitable for panel mounting, DIN rail installation, or desktop deployment.
Specifications
| Product Type | RS485 to Ethernet Serial Server / Converter |

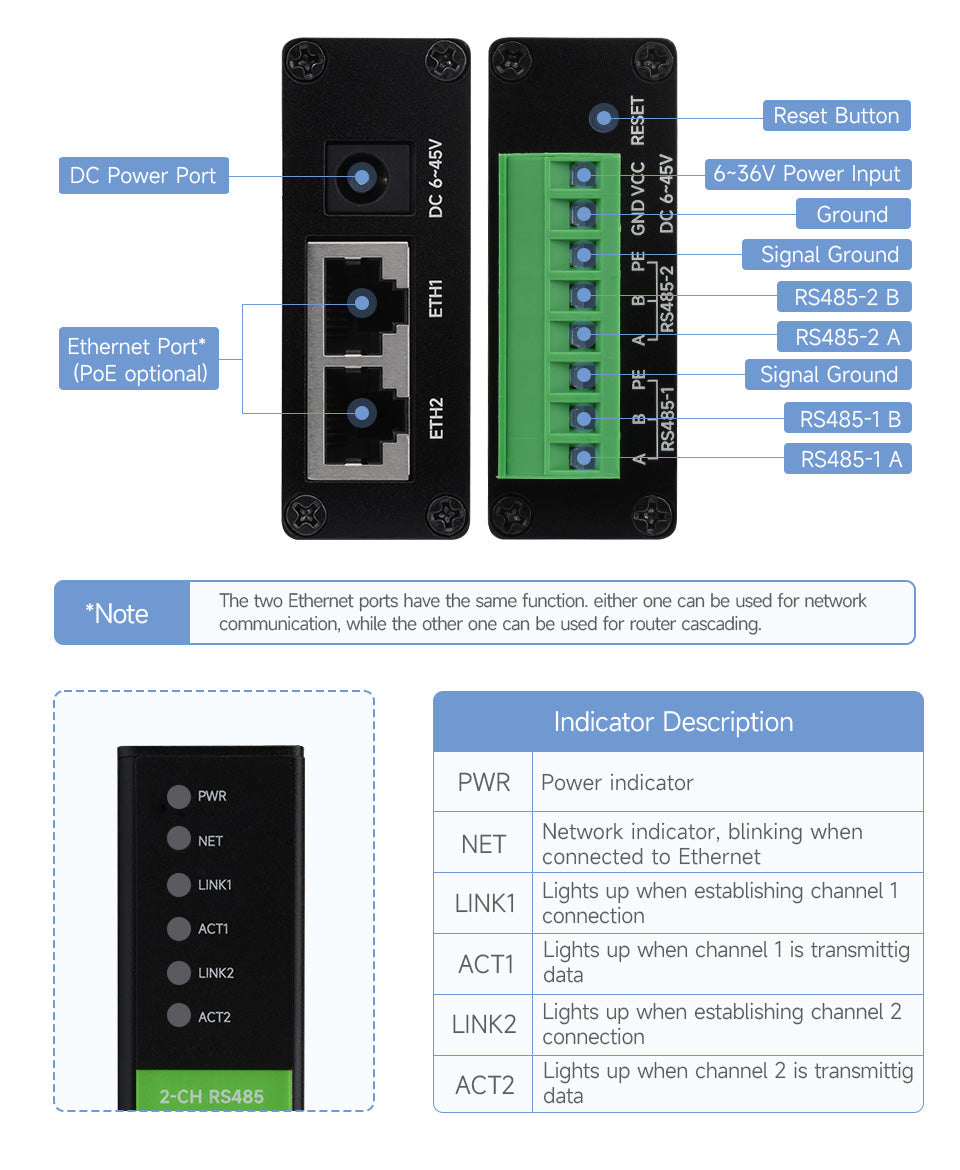

| Serial Ports | 2 x RS485 (Independent Operation) |
| Ethernet Port | 1 x RJ45, 10/100 Mbps Auto-Negotiation |
| POE Support | Yes - IEEE 802.3af/at compliant |
| Baud Rate | 300 bps to 230,400 bps (configurable per channel) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Odd, Even |
| Network Protocols | TCP/IP, UDP, ARP, ICMP, DHCP, DNS, HTTP |

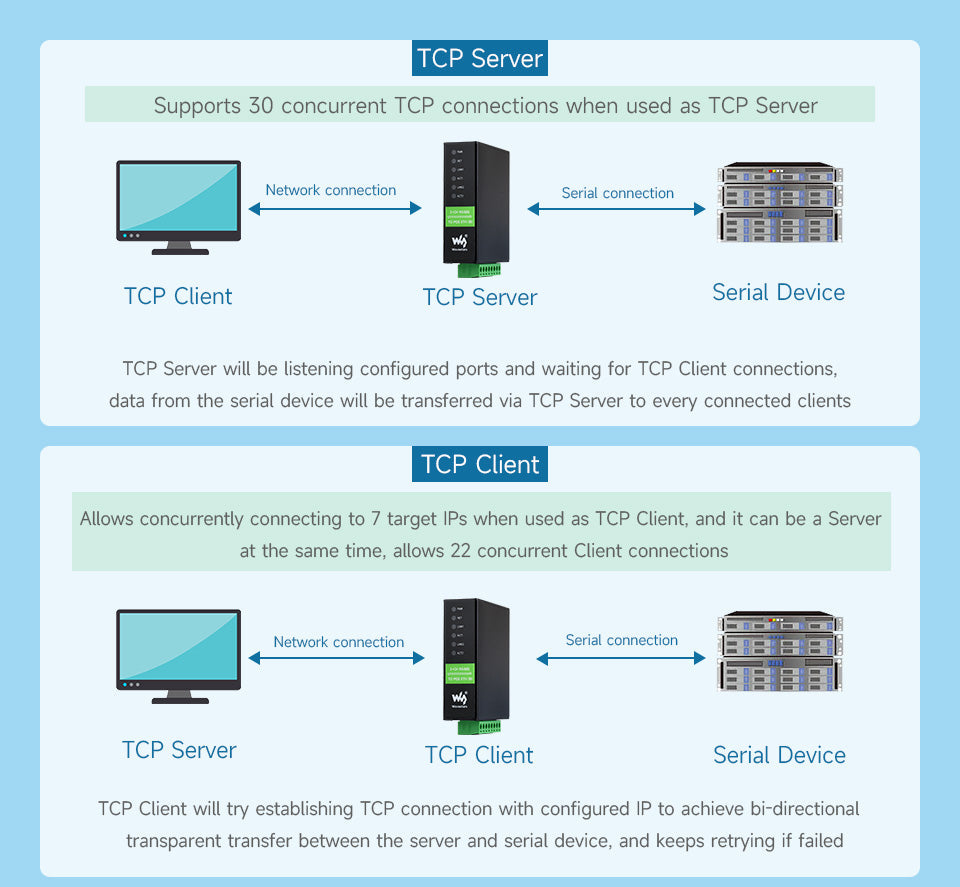

| Working Modes | TCP Server, TCP Client, UDP, Virtual COM |
| Configuration | Web Interface / Configuration Utility Software |

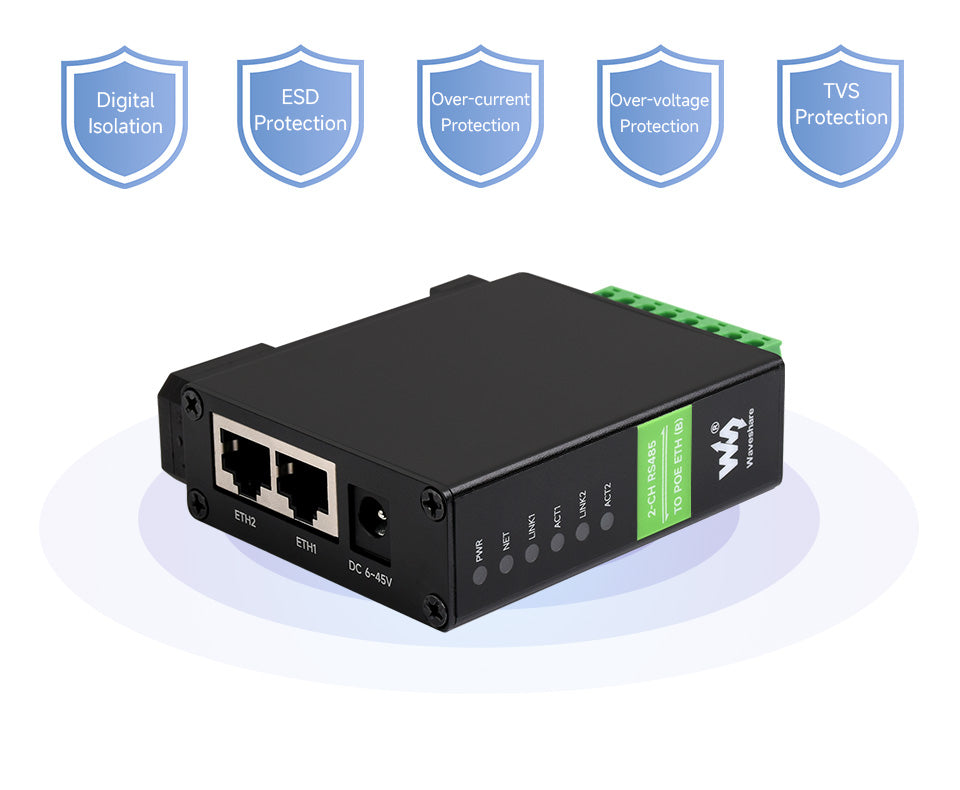

| RS485 Protection | Built-in ESD and surge protection |
| Max Communication Distance | RS485: up to 1200 m; Ethernet: up to 100 m (standard CAT5/6) |

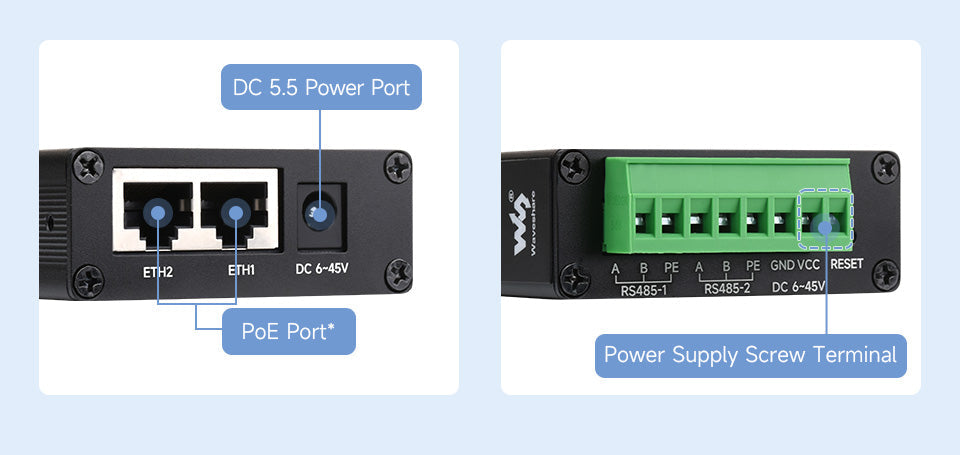

| Power Supply | POE (via Ethernet) or DC input (typically 9-36V DC) |
| Operating Temperature | -40 degreesC to +85 degreesC (Industrial Grade) |
| Dimensions | Compact industrial enclosure (refer to datasheet for exact dimensions) |
| Origin | Original / Authentic |
| Warranty | |
| Support | Email & WhatsApp - reliable Technical Assistance |
| Price | Rs.3,190.00 (Inclusive of all taxes) |
Why Choose This Serial Server?
- 100% Authentic
- POE Simplifies Installation: Power and data over a single Ethernet cable dramatically reduces cabling costs and installation time, especially in remote or hard-to-reach locations.
- Dual Independent Channels: Connect two separate RS485 devices to your network simultaneously - ideal for multi-device monitoring without additional hardware.
- Industrial Reliability: Built for harsh environments with wide temperature tolerance, surge protection, and auto-reconnect - deploy confidently in factories, farms, and field installations.
- Easy Configuration: Web-based setup means no specialized software or deep networking knowledge required - get up and running in minutes.
- Expert Technical Support: Our engineering team provides hands-on guidance for integration, configuration, and troubleshooting.
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
