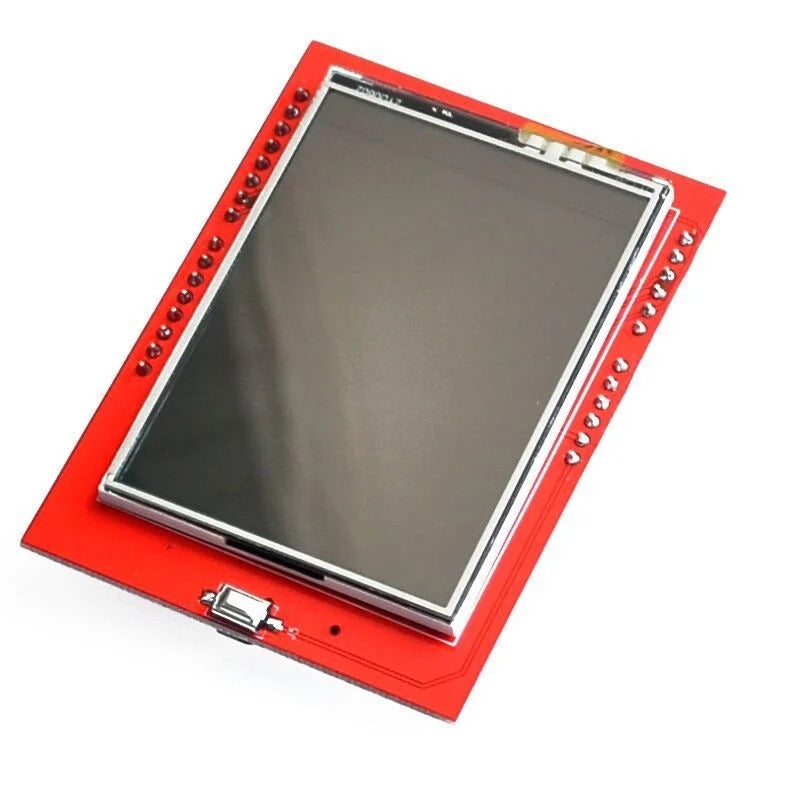

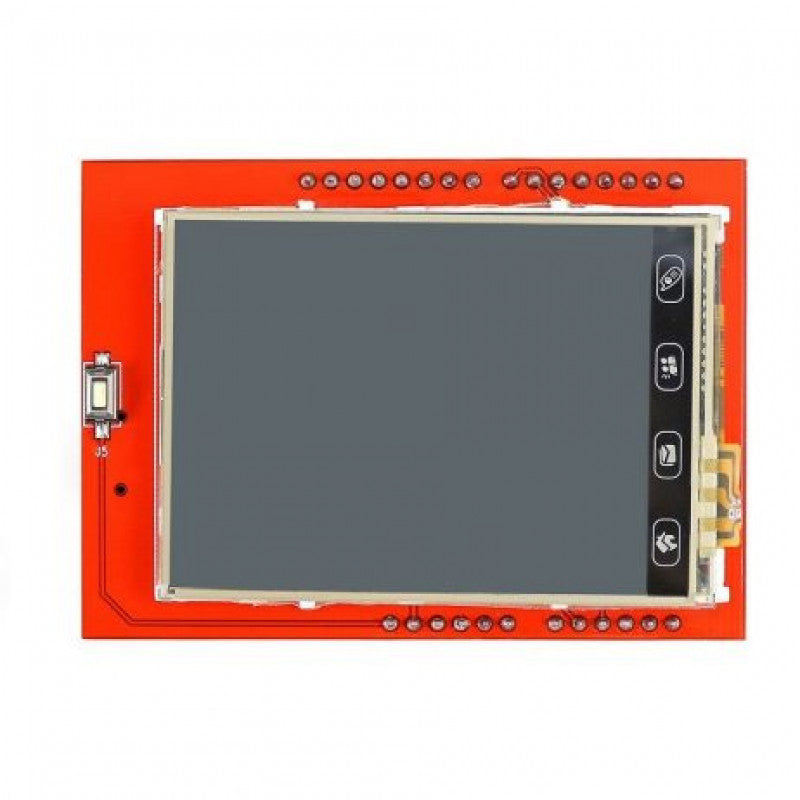

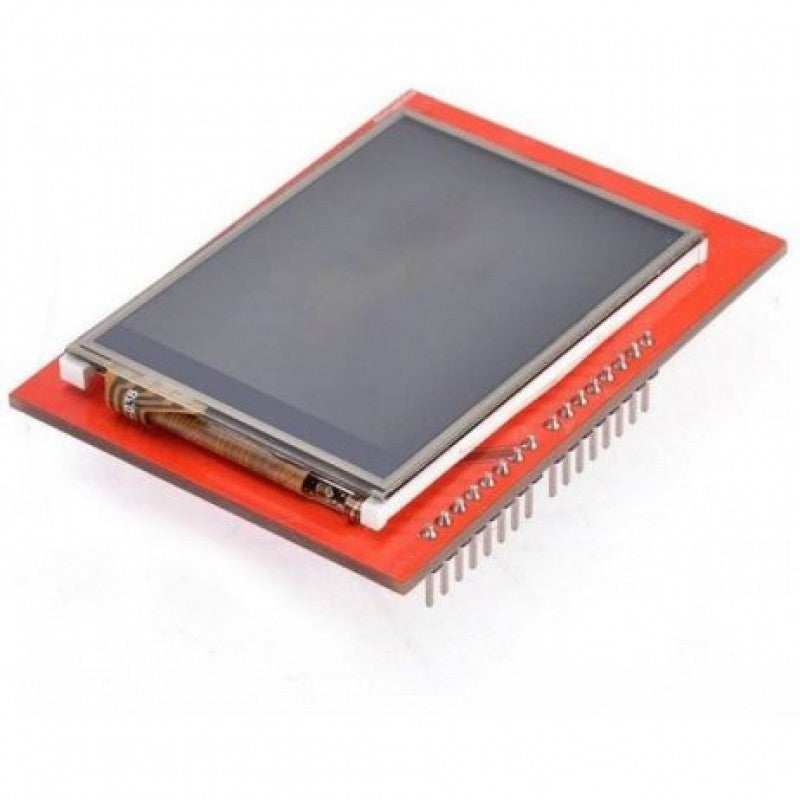

2.4 Inch Display with Resistive Touch - DMG32240C024_03WTR
Compact, versatile, and touch-enabled - the DWIN DMG32240C024_03WTR is a 2.4-inch TFT LCD display module with integrated resistive touchscreen, designed for embedded HMI applications. Featuring a 320x240 pixel resolution and DWIN's powerful T5 ASIC processor, this module delivers smooth graphics, intuitive touch interaction, and seamless UART communication. Available now from The Tech Depot, Bengaluru, with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Part Number | DMG32240C024_03WTR |
| Manufacturer | DWIN Technology |
| Display Type | TFT LCD |
| Screen Size | 2.4 inches (diagonal) |
| Resolution | 320 x 240 pixels (QVGA) |
| Touch Panel | Resistive Touch (4-wire) |
| Controller / Processor | DWIN T5 ASIC |
| Interface | UART (TTL level, 3.3V/5V compatible) |
| Baud Rate | Configurable (default 115200 bps) |
| Color Depth | 65K colors (16-bit RGB565) |
| Backlight | LED backlight with adjustable brightness |
| Operating Voltage | 5V DC |
| Operating Current | ~150 mA (typical) |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Storage Temperature | -30 degreesC to +80 degreesC |
| Viewing Angle | Wide viewing angle (IPS-level) |
| Flash Storage | 16 MB onboard flash for GUI assets |
| GUI Development Tool | DGUS (DWIN GUI Software) |
| Supported Protocols | DWIN DGUS protocol / Modbus RTU |
| Module Dimensions | Approximately 72.8 x 51.8 mm |
| Active Display Area | Approximately 48.96 x 36.72 mm |
| Mounting | Screw holes / bezel mount compatible |
| Weight | ~35 g |
| Series | DWIN C-Series (Cost-effective) |
| Origin | Original / Authentic DWIN product |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 2.4-inch QVGA display: 320x240 resolution delivers clear text, icons, and graphical elements in a compact form factor ideal for space-constrained designs
- Resistive touch panel: 4-wire resistive touch works with bare fingers, gloved hands, or a stylus - reliable in industrial and outdoor environments
- DWIN T5 ASIC processor: Dedicated graphics processor handles all display rendering, freeing your host MCU from heavy GUI processing tasks
- Simple UART communication: Connect to any microcontroller (Arduino, STM32, ESP32, Raspberry Pi) via standard TTL UART - no complex display drivers required
- DGUS GUI development: Design rich graphical interfaces using DWIN's free DGUS software with drag-and-drop widgets, buttons, sliders, gauges, and text fields
- 16 MB onboard flash: Store GUI pages, images, fonts, and animations directly on the module - no external SD card needed for most projects
- 65K color support: Vibrant 16-bit color rendering for professional-looking interfaces with smooth gradients and detailed graphics
- Adjustable LED backlight: Software-controllable brightness for optimal visibility in varying lighting conditions and power-saving modes
- Wide temperature range: Operates reliably from -20 degreesC to +70 degreesC, suitable for industrial, automotive, and outdoor applications
- 5V operation: Direct 5V power input simplifies integration with common microcontroller platforms without additional voltage regulation
- Compact and lightweight: Small footprint (~72.8 x 51.8 mm) and light weight (~35 g) make it easy to embed in enclosures and portable devices
- Cost-effective C-Series: DWIN's C-Series offers excellent performance-to-price ratio for budget-conscious projects without sacrificing quality
Why Choose the DMG32240C024_03WTR?
- 100% authentic DWIN product: Sourced directly from authorized
