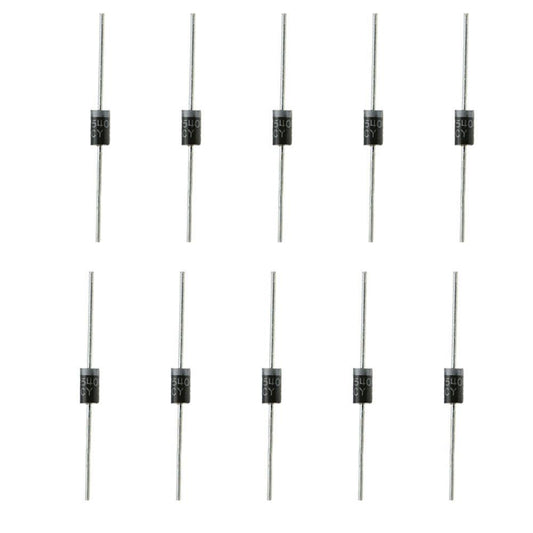

1N5408 Diode - (Pack of 10)
1N5408 Diode - (Pack of 10)
1N5408 Diode - (Pack of 10)
Get a pack of 10 high-quality 1N5408 general-purpose silicon rectifier diodes, rated for 3A forward current and 1000V peak inverse voltage. Ideal for power supply rectification, voltage regulation circuits, and high-voltage protection applications. Premium components from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Component Type | Silicon Rectifier Diode |
| Part Number | 1N5408 |
| Package | DO-201AD (Axial Lead) |
| Quantity | 10 Pieces |
| Maximum Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Average Forward Current (IF) | 3A |
| Peak Forward Surge Current (IFSM) | 200A (8.3ms single half-sine wave) |
| Maximum Forward Voltage Drop (VF) | 1.0V @ 3A |
| Maximum Reverse Current (IR) | 5uA @ rated DC blocking voltage |
| Operating Junction Temperature | -65 degreesC to +175 degreesC |
| Storage Temperature | -65 degreesC to +175 degreesC |
| Polarity | Cathode band marked on body |
| Mounting | Through-Hole (THT) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- High Voltage Rating: 1000V peak inverse voltage makes it suitable for high-voltage rectification in mains-powered circuits and industrial power supplies.
- 3A Forward Current: Handles up to 3 amperes of continuous forward current, supporting moderate to high-power applications without overheating.
- High Surge Capability: Withstands surge currents up to 200A, providing robust protection against transient spikes during power-on or fault conditions.
- Low Forward Voltage Drop: Typical VF of 1.0V at rated current ensures efficient power conversion with minimal energy loss as heat.
- Wide Temperature Range: Operates reliably from -65 degreesC to +175 degreesC junction temperature, suitable for demanding environmental conditions.
- Standard DO-201AD Package: Axial-lead through-hole package with clear cathode band marking for easy identification and soldering on breadboards and PCBs.
- Lead-Free & RoHS Compliant: Environmentally friendly construction meeting international compliance standards.
- Pack of 10: Bulk quantity provides excellent value for multiple projects, prototyping iterations, or classroom use.
Why Choose This?
- 100% authentic 1N5408 diodes sourced from trusted and authorized component suppliers
- Tested and verified for correct voltage and current ratings before dispatch
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support included to help with circuit design and component selection
- Pack of 10 offers cost savings over buying individual diodes
Project Ideas
- AC-to-DC Power Supply: Build a full-wave bridge rectifier using four 1N5408 diodes to convert mains AC voltage into smooth DC output for powering amplifiers, battery chargers, and bench supplies.
- Battery Charger Circuit: Use the 1N5408 in lead-acid or lithium battery charging circuits where reliable rectification and reverse polarity protection are essential at moderate current levels.
- Flyback / Freewheeling Diode: Protect transistors, MOSFETs, and relay driver circuits from inductive voltage spikes generated by motors, solenoids, and transformer windings.
- Voltage Multiplier Circuits: Leverage the 1000V rating to build voltage doublers or triplers for high-voltage experiments, Geiger counters, or electrostatic projects.
- Solar Panel Blocking Diode: Prevent reverse current flow from batteries back into solar panels during nighttime or low-light conditions in off-grid solar installations.
- Reverse Polarity Protection: Place in series with the power input of sensitive circuits to guard against accidental reverse battery or power supply connections.
- Learning & Education: Ideal for electronics students studying diode characteristics, V-I curves, rectification theory, and filter circuit design in lab practicals.
1N5408 vs Related Diodes
| Parameter | 1N5401 | 1N5404 |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
