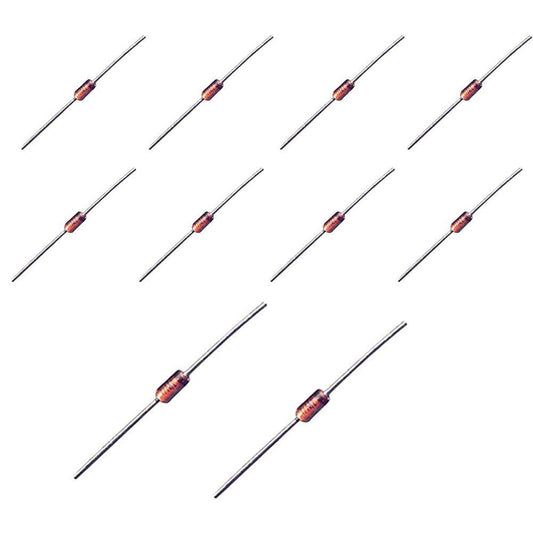

1N4148 Diode - (Pack of 10)

Looking to buy 1N4148 Diode - (Pack of 10) at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

The 1N4148 is one of the most widely used high-speed switching signal diodes in electronics. This pack of 10 provides essential components for signal processing, voltage clamping, protection circuits, and general-purpose rectification in low-power applications.

Specifications

Why Choose 1N4148 Diode - (Pack of 10)?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of 1N4148 Diode - (Pack of 10)

• Ultra-Fast Switching Speed: Reverse recovery time of <=4ns makes it ideal for high-frequency switching circuits, pulse generators, and digital logic applications.
• Low Forward Voltage Drop: Approximately 0.7V at typical operating current, ensuring minimal signal loss in series configurations.
• Wide Voltage Rating: 100V maximum reverse voltage provides ample headroom for most signal-level and low-power circuit designs.
• Extremely Low Reverse Leakage: Only 25nA at 20V reverse bias, ensuring clean signal isolation and minimal parasitic current draw.
• Low Junction Capacitance: 4pF typical capacitance enables use in RF and high-frequency applications without significant signal degradation.
• Compact DO-35 Glass Package: Small axial form factor with clear cathode marking band fits easily on breadboards, perfboards, and standard PCB footprints.
• Wide Temperature Range: Operates reliably from -65 degreesC to +175 degreesC, suitable for demanding environmental conditions.
• Industry Standard: The 1N4148 is the most universally recognized and widely stocked signal diode - datasheets, reference designs, and community support are abundant.
• Pack of 10: Convenient quantity for prototyping multiple circuits, classroom use, or keeping your component inventory stocked.
• Perfect balance of quantity and value - 10 pieces cover most project needs without excess waste

Perfect For

• Flyback / Freewheeling Diode for Relays & Motors

How the 1N4148 Works

The 1N4148 is a silicon planar switching diode constructed using epitaxial technology for fast switching performance. Like all PN-junction diodes, it allows current to flow in one direction (from anode to cathode) when forward biased above its threshold voltage (~0.7V) and blocks current flow when reverse biased up to its rated breakdown voltage of 100V.

What distinguishes the 1N4148 from standard rectifier diodes (such as the 1N4007) is its extremely fast reverse recovery time. When a diode switches from conducting (forward bias) to blocking (reverse bias), there is a brief moment where reverse current flows as stored charge in the junction is depleted. The 1N4148 accomplishes this transition in under 4 nanoseconds, making it suitable for circuits operating at frequencies well into the MHz range.

The black band printed on the glass body indicates the cathode terminal. Current flows from anode to cathode in normal forward-biased operation. When reading a schematic, the cathode corresponds to the bar side of the diode triangle symbol.

Frequently Asked Questions

Customer Support

Email: techdepotindia@gmail.com

WhatsApp: Available for setup and troubleshooting help

Order your 1N4148 Diode - (Pack of 10) today and start building your next project.
