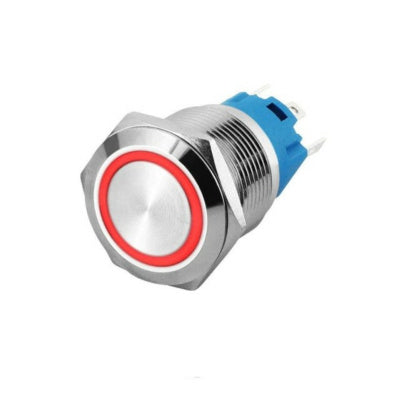

19mm ProMax PPS19005RRM Metal Push Button Switch Waterproof Momentary Red
19mm ProMax PPS19005RRM Metal Push Button Switch Waterproof Momentary Red
Shipping calculated at checkout.
Looking to buy 19mm ProMax PPS19005RRM Metal Push Button Switch Waterproof Momentary Red at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
19mm ProMax PPS19005RRM Metal Push Button Switch Waterproof Momentary Red
Flat Head 19MM 12-24V Waterproof Self-Locking Metal Push Button Switch with White Led Light
Why Choose 19mm ProMax PPS19005RRM Metal Push Button Switch Waterproof Momentary Red?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
These are Industrial Grade high-quality switches in the metal body. Panel Mount offers easy installation in Enclosures and Cabinets. These switches offer a premium feel after installation. Also, come with internal indication light to indicate status. This Metal Pushbutton is a perfect choice if you are in need of a heavy-duty push-button. These metal push buttons are very tough, small, panel-mount switches with an illuminated LED Power symbol. It is an SPST with 19mm threading. This button is perfect for basic On/Off functions. The Switch has small solder lugs for connection. These buttons are rated up to 4A 250VAC while the LED is rated for 12-24V.
The Indication LED has its own 2 Pins, it can be turned on by 12-24V Power and can be controlled independently from the switch. If you are controlling a 12-24V Load through the switch, you can connect the output of the switch to the LED pins and light up the LED only when the switch is on.
This is an SPST Single pole switch with C, NO, and NC terminals. This allows you to control up to 1 device or load wires independently. If you use an SPST switch for input power or battery power input you can switch live power wire using this switch for power isolation when the switch is off.
Switch Rated Voltage : 36V DC,250V AC
Switch Rated Current : 5A DC,5A AC
Led Rated Voltage: 3V-220V
Led Rated Current : <=20mA
Rated Power: 180W(DC),1250W(AC)
Insulation and voltage resistance : 1800V
Contact Resistance: <=50mOhm
Isolation Resistance: >=1000Ohm
Mechanical life: 500,000 times
Electrical life: 100,000times (250V/3A) ,50,000times (250V/5A)
Operating Temperature: -25 degreesC~+85 degreesC
Applications:
- These switches can replace most generic switches to offer a premium look and feel after panel mount installation
- Can be used as a main power control switch for On/Off applications
- Can be used in medical and consumer products for main power control
- Generic Settings or UI Input Switch
- Great for electromagnetic starters, motor starters, etc
- Relay Control Switch
- Horn Button Switch
- PC Power Switch or any circuit controls
