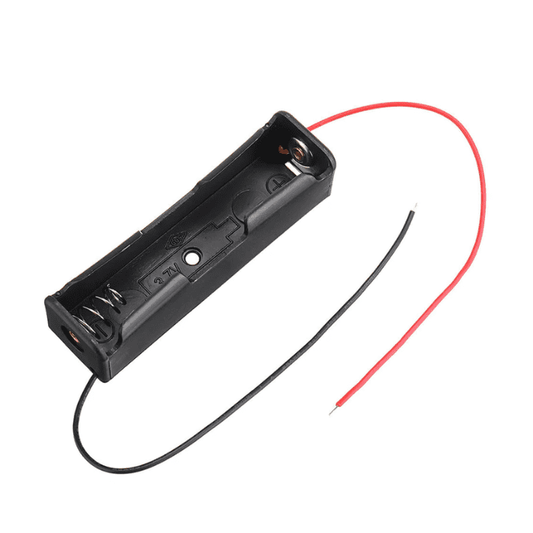

18650 Single Battery Cell Case Holder
18650 Single Battery Cell Case Holder
18650 Single Battery Cell Case Holder
Secure, Reliable Power Housing for Your 18650 Lithium-Ion Battery
The 18650 Single Battery Cell Case Holder is an essential component for any project requiring a clean, secure, and accessible way to mount a single 18650 lithium-ion battery. Designed with spring-loaded contacts and sturdy construction, this holder ensures a solid electrical connection while allowing quick and easy battery swaps. Whether you're building a portable power bank, a flashlight circuit, or an IoT prototype, this compact holder keeps your power source firmly in place.
Specifications
| Parameter | Detail |
| Battery Compatibility | Single 18650 Li-Ion Cell (3.7V) |
| Holder Type | Open-frame case with spring contacts |
| Contact Material | Nickel-plated steel springs |
| Body Material | ABS plastic (flame-retardant) |
| Output Connection | Solder tabs / Wire leads |
| Max Current Rating | ~3A (continuous) |
| Dimensions (approx.) | 75mm x 21mm x 19mm |
| Weight | ~8g (without battery) |
| Mounting | Snap-fit / Screw holes (varies by design) |
| Operating Temperature | -20 degreesC to +60 degreesC |
| Type | Electronics Component - Battery Accessory |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Spring-Loaded Positive & Negative Contacts - Nickel-plated steel springs ensure firm grip and reliable electrical continuity, even under vibration
- Durable ABS Plastic Body - Lightweight yet tough housing resists impact, heat, and chemical exposure
- Tool-Free Battery Swap - Simply slide the 18650 cell in or out for effortless replacement and testing
- Solder-Friendly Terminals - Pre-tinned tabs or wire leads allow quick integration into any circuit
- Compact Single-Cell Design - Minimal footprint makes it ideal for space-constrained enclosures and PCB layouts
- Universal 18650 Compatibility - Accommodates both flat-top and button-top 18650 cells (protected and unprotected)
- Secure Retention - Snug fit prevents the battery from dislodging during movement or orientation changes
- Mounting Flexibility - Can be secured with screws, adhesive, or snap-fit into custom enclosures
Why Choose This 18650 Battery Holder?
- 100% authentic from trusted suppliers - no flimsy knockoffs
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
- Expert technical support included with every purchase
- Consistent contact pressure ensures low-resistance connections for efficient power delivery
- Versatile integration - works with breadboards, custom PCBs, 3D-printed enclosures, and panel mounts
- Tested for reliability - rated for thousands of battery insertion cycles
Project Ideas
DIY Portable Power Bank
Wire one or more holders in series/parallel to build a custom USB power bank. Pair with a TP4056 charging module and a boost converter for a complete portable charging solution.
Custom Flashlight / Torch Circuit
Mount a single 18650 cell in this holder and connect it to a high-power LED driver for a homemade flashlight with swappable batteries.
Robotics & IoT Prototyping
Power your Arduino, ESP32, or Raspberry Pi projects with a single 18650 cell. The holder makes it easy to swap batteries during rapid prototyping and field testing.
Remote Sensor Nodes
Deploy battery-powered environmental sensors, weather stations, or LoRa nodes in the field with quick-change battery capability.
Learning & Education
Ideal for electronics students learning about battery circuits, voltage regulation, series/parallel configurations, and power management.
Emergency & Backup Power
Integrate into UPS circuits or emergency lighting systems where a single 18650 cell provides reliable backup power.
What's in the Box
- 1 x 18650 Single Battery Cell Case Holder
- Wire leads or solder tabs (as per variant)
- Documentation and support materials
How to Use
- Identify Polarity - Locate the positive (+) and negative () markings on the holder
- Insert Battery - Place your 18650 cell into the holder, aligning the flat negative end with the spring contact
- Connect to Circuit - Solder the holder's leads/tabs to your PCB or breadboard, observing correct polarity
- Secure the Holder - Mount using screws, adhesive tape, or friction fit inside your enclosure
- Power Up - Your circuit is now powered and ready to go
Safety & Best Practices
- Always observe correct polarity when inserting the battery
- Do not exceed the holder's rated current capacity
- Use only quality 18650 cells from reputable manufacturers
- Avoid short-circuiting the holder terminals
- Do not expose to temperatures beyond the rated operating range
- Inspect contacts periodically for corrosion or wear
- Keep away from water and conductive debris
Frequently Asked Questions
Is this 100% authentic?
Yes, sourced directly from authorized distributors. Authentication verified. You receive a quality-tested holder with reliable spring contacts and durable construction.
Does it fit both flat-top and button-top 18650 cells?
Yes, the spring-loaded contacts accommodate both flat-top and button-top 18650 batteries, including protected cells with slightly longer length.
Can I connect multiple holders in series or parallel?
Absolutely. Wire multiple single-cell holders in series for higher voltage or in parallel for higher capacity.
