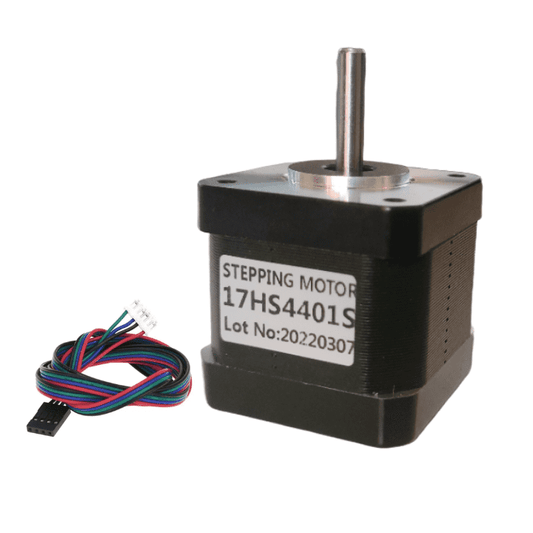

17HS4401S NEMA 17 Stepper Motor
High-torque, precision bipolar stepper motor from Tech Depot India, Bengaluru. The 17HS4401S is the industry-standard NEMA 17 frame motor trusted by makers, engineers, and manufacturers worldwide for 3D printers, CNC machines, laser engravers, and robotics. Fast shipping, 15-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Motor Type | Bipolar Stepper Motor (2-Phase, 4-Wire) |
| Frame Size | NEMA 17 (42 x 42 mm) |
| Model | 17HS4401S |
| Step Angle | 1.8 degrees (200 steps/revolution) |
| Holding Torque | 40 Ncm (0.4 Nm / 56 ozin) |
| Rated Current | 1.7 A per phase |
| Phase Resistance | 1.5 Ohm +/- 10% |
| Phase Inductance | 2.8 mH +/- 20% |
| Operating Voltage | 2.55 V (rated); typically driven at 12-24 V with chopper driver |
| Body Length | 40 mm |
| Shaft Diameter | 5 mm (D-shaped flat) |
| Shaft Length | ~23 mm |
| Number of Leads | 4 wires (bipolar configuration) |
| Insulation Class | Class B (130 degreesC) |
| Weight | ~280 g |
| Mounting Pattern | NEMA 17 standard - 31 mm hole spacing (M3 screws) |
| Detent Torque | 2.2 Ncm |
| Rotor Inertia | 54 gcm2 |
| Origin | Original / Authentic |
| Warranty | 15-day warranty on manufacturing defects |
| Support | Email & WhatsApp reliable |
Key Features
- High Holding Torque: 40 Ncm provides reliable grip and smooth motion, ideal for driving belts, lead screws, and direct-drive extruders.
- 1.8 degrees Step Angle: 200 full steps per revolution delivers precise positioning; supports micro-stepping (up to 1/32) with compatible drivers like A4988, DRV8825, or TMC2209.
- Optimized 1.7 A Rating: Balanced current draw works seamlessly with popular stepper drivers on 12 V and 24 V systems without excessive heat.
- Compact 40 mm Body: Slim profile fits tight enclosures while still delivering strong torque output.
- D-Shaft Design: 5 mm flat-sided shaft ensures positive engagement with GT2 pulleys, flexible couplings, and gear assemblies - no slipping.
- NEMA 17 Standard Mounting: Drop-in compatible with Ender 3, Prusa i3, CR-10, Voron, and virtually all NEMA 17-based machines.
- 4-Wire Bipolar Configuration: Simple wiring with full torque utilization; compatible with all modern stepper driver ICs.
- Low Noise Operation: Smooth current waveform response pairs well with silent drivers (TMC series) for whisper-quiet motion.
Why Choose the 17HS4401S?
- 100% authentic motors sourced directly from trusted, authorized manufacturers
- The go-to NEMA 17 motor used in Creality, Prusa, and open-source 3D printer designs
- Proven reliability - millions deployed in 3D printers, CNC routers, and automation systems worldwide
- 7-10 working days shipping, 7-10 working days delivery from our Bengaluru warehouse to most of India
- Expert technical support to help with wiring, driver configuration, and firmware settings
- Competitively priced for individual makers and bulk buyers alike
Compatible Drivers & Controllers
- A4988 Stepper Driver - Budget-friendly, up to 1/16 micro-stepping
- DRV8825 Stepper Driver - Higher current capacity, up to 1/32 micro-stepping
- TMC2208 / TMC2209 - Ultra-silent StealthChop drivers for noise-sensitive applications
- TMC5160 - High-performance driver for demanding CNC and industrial setups
- RAMPS 1.4 / SKR Mini / SKR 2 / Duet Boards - Direct
Frequently Asked Questions
When will I receive my order?
Products ship within 7-10 working days from our Bengaluru warehouse. Delivery within 7-10 working days to most locations across India.
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
15-day warranty on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
