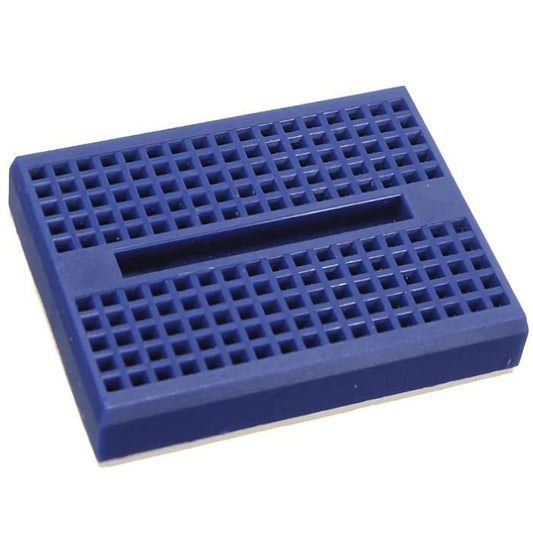

170 Points Mini Breadboard
170 Points Mini Breadboard
Shipping calculated at checkout.
Looking to buy 170 Points Mini Breadboard at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Compact and portable solderless mini breadboard featuring 170 tie points, ideal for quick prototyping, small circuit builds, and space-constrained projects.
Specifications
| Tie Points | 170 Points |

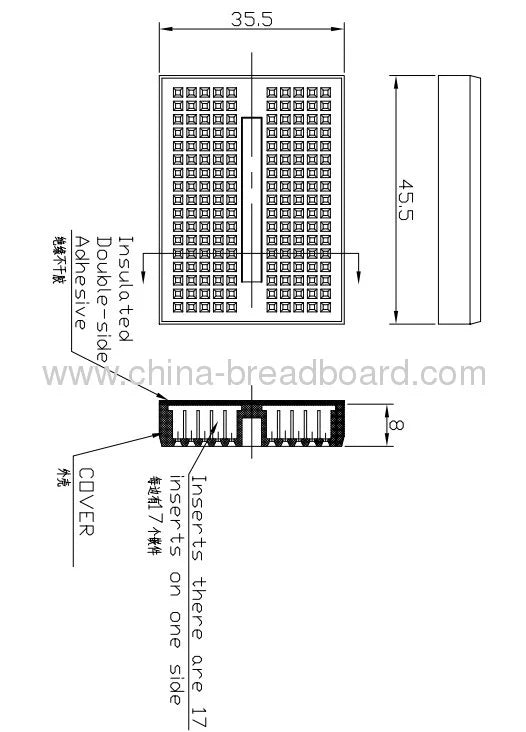

| Dimensions (Approx.) | 47mm x 35mm x 8.5mm |
| Pitch Spacing | 2.54mm (Standard) |
| Contact Material | Phosphor Bronze / Nickel-Plated Clips |
| Housing Material | ABS Plastic |
| Wire Gauge Compatibility | 20-29 AWG (0.3mm-0.8mm diameter) |
| Current Rating | 1A per contact (max) |
| Voltage Rating | Up to 300V DC |
| Operating Temperature | -20 degreesC to +80 degreesC |
| Insertion Life | 50,000+ cycles per contact point |
| Mounting | Self-adhesive backing tape for secure placement |
| Interlocking | Side dovetail connectors for combining multiple boards |
| Type | Solderless Breadboard - Electronics Prototyping Component |
| Origin | Original / Authentic |
Why Choose 170 Points Mini Breadboard?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 170 Points Mini Breadboard
- Ultra-Compact Form Factor: At just 47mm x 35mm, it fits easily into tight spaces, portable kits, and modular project enclosures.
- 170 Solderless Tie Points: Enough connection points for small ICs, LED circuits, sensor modules, and basic logic circuits without soldering.
- Standard 2.54mm Pitch: Fully compatible with DIP ICs, standard jumper wires, and through-hole components used across the electronics industry.
- Interlocking Dovetail Design: Snap multiple mini breadboards together side-by-side to expand your prototyping area as your project grows.

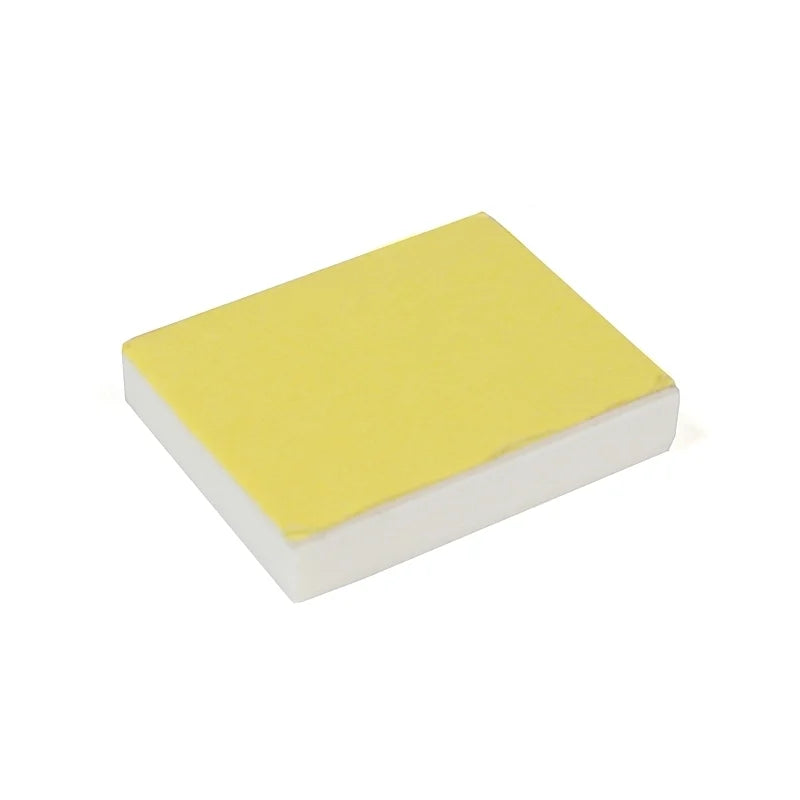

- Self-Adhesive Backing: Peel-and-stick mounting tape on the bottom lets you secure the breadboard to enclosures, robot chassis, or project boards.
- Durable Phosphor Bronze Contacts: Nickel-plated internal clips provide reliable electrical connections rated for over 50,000 insertion cycles.
- Colour-Coded Options: Available in multiple colours (white, red, blue, yellow, green, black) for colour-coding different circuit sections in complex builds.
- Reusable and Non-Destructive: Build, test, modify, and disassemble circuits endlessly without damaging components or the board itself.
- Lightweight and Portable: Weighs under 15 grams - perfect for carrying in tool kits, lab bags, and maker pouches.
- Ideal companion for Arduino Nano, ESP8266, ATtiny, and other compact microcontroller boards
- Bulk-friendly pricing for classrooms, workshops, and maker spaces
Perfect For
- LED Blink Circuit: Connect an LED, resistor, and battery to build your very first electronics circuit on this compact breadboard - perfect for absolute beginners.
- Arduino Nano Sensor Hub: Mount the mini breadboard alongside an Arduino Nano to prototype temperature, humidity, or light sensor circuits in a portable setup.
- 555 Timer Oscillator: Build a classic astable multivibrator using a 555 timer IC to generate square waves, blink LEDs, or drive a small buzzer.
- Voltage Regulator Module: Prototype a simple 5V or 3.3V power supply using an LM7805 or AMS1117 regulator to power your microcontroller projects.
- I2C OLED Display Test Bench: Quickly wire up an I2C OLED display module with pull-up resistors and an ESP8266 or Arduino for display prototyping.
- Robot Wiring Hub: Stick the mini breadboard onto a robot chassis using the adhesive backing and use it as a central wiring hub for motor drivers, sensors, and controllers.
- Modular Synth / Audio Experiments: Chain multiple mini breadboards together to build small audio oscillator, filter, or amplifier circuits for sound experimentation.
- Classroom Electronics Lab: Distribute individual mini breadboards to students for hands-on learning of series/parallel circuits, Ohm's law, and basic component identification.
What's in the Box
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
