170 Point Breadboard
170 Point Breadboard
Shipping calculated at checkout.
Looking to buy 170 Point Breadboard at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

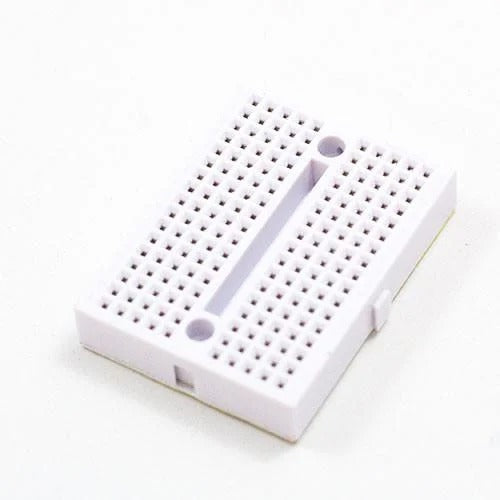

Compact 170-point solderless breadboard ideal for small circuit prototyping, quick testing, and portable electronics projects.
Specifications
| Type | Solderless Mini Breadboard |
| Total Tie Points | 170 |

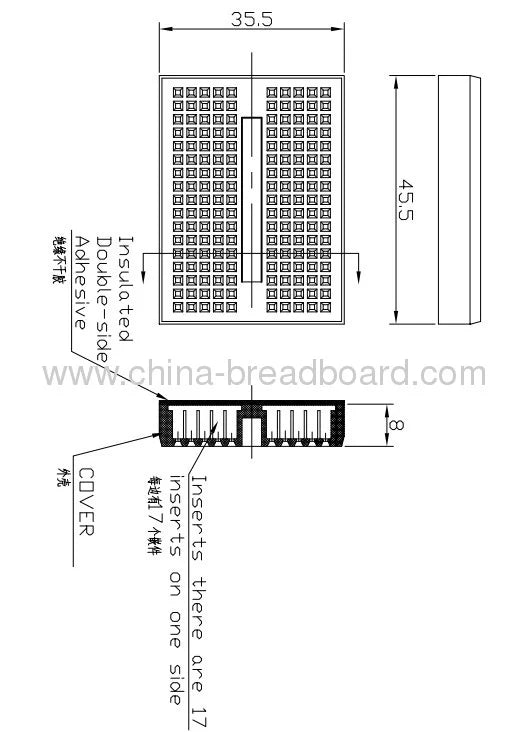

| Dimensions (Approx.) | 47mm x 35mm x 8.5mm |
| Hole Pitch | 2.54mm (Standard) |
| Contact Rows | 17 columns x 10 rows (2 x 5-row strips) |
| Compatible Wire Gauge | 20-29 AWG solid core jumper wire |
| Contact Material | Phosphor bronze / Nickel-plated spring clips |
| Base | ABS plastic with self-adhesive backing tape |
| Operating Temperature | -20 degreesC to +80 degreesC |
| Rated Voltage | Up to 36V DC |
| Rated Current per Contact | Up to 2A |
| Contact Resistance | <= 20mOhm |
| Insertion Life | 50,000+ cycles per contact point |
| Power Rails | None (signal rows only) |
| Interlocking | Side dovetail slots for connecting multiple boards |
| Color Options | Available in white, red, blue, yellow, green, black (as stocked) |
| Origin | Original / Authentic |
Why Choose 170 Point Breadboard?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 170 Point Breadboard
- Ultra-Compact Form Factor: At just 47mm x 35mm, this mini breadboard fits easily into tight project enclosures, portable kits, and alongside microcontroller boards without consuming workspace.
- 170 Reliable Tie Points: Two strips of 5 interconnected rows across 17 columns provide ample connection points for small-to-medium IC circuits, sensor modules, and basic logic builds.
- Standard 2.54mm Pitch: Fully compatible with DIP ICs, Arduino headers, ESP8266/ESP32 modules, jumper wires, resistors, capacitors, LEDs, and all standard through-hole components.

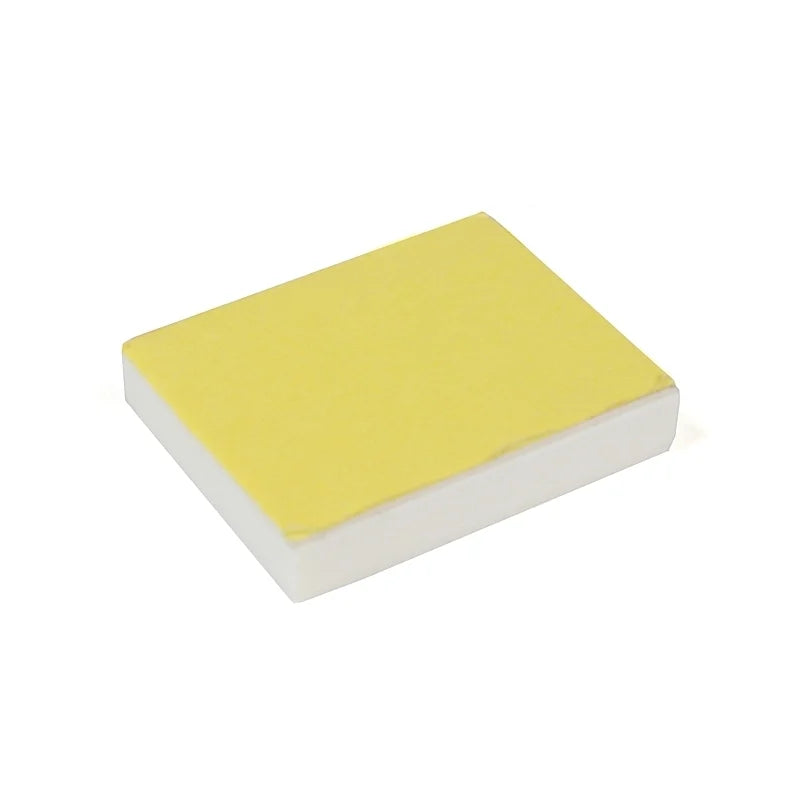

- Self-Adhesive Backing: Peel-and-stick 3M-style adhesive pad on the bottom allows secure mounting to project bases, robot chassis, enclosure walls, or other surfaces.
- Dovetail Interlocking Edges: Snap multiple 170-point boards together side by side to expand your prototyping area as needed - scale from 170 to 340, 510, or more tie points seamlessly.
- Solderless & Reusable: Insert and remove components thousands of times without soldering - perfect for iterative design, experimentation, and learning.
- Durable Spring Contacts: Phosphor bronze clips with nickel plating ensure low contact resistance, firm component grip, and long insertion life exceeding 50,000 cycles.
- Color-Coded Options: Multiple color choices help organize complex multi-board setups - assign colors to power, signal, or functional sections for visual clarity.
- 100% authentic from trusted component suppliers - no counterfeit or substandard materials
- Perfect companion board for Arduino Nano, ATtiny, ESP-01, and other compact modules
- Ideal for building portable electronics kits and travel-friendly prototyping setups
Perfect For
- Arduino Nano Companion Board: Mount a 170-point breadboard alongside an Arduino Nano to prototype LED blinkers, button inputs, sensor readers, and serial communication circuits in a compact footprint.
- ESP-01 WiFi Module Testing: Use the mini breadboard to wire up an ESP-01 module with voltage regulators, pull-up resistors, and header connections for quick IoT experiments.
- ATtiny Microcontroller Projects: Build standalone ATtiny85/ATtiny13 circuits for small automation tasks - the 170-point board is perfectly sized for these 8-pin DIP microcontrollers.
- Sensor Breakout Testing: Quickly test temperature sensors (LM35, DHT11), light sensors (LDR), IR receivers, or motion detectors before committing to a soldered PCB design.
- LED & Indicator Circuits: Prototype status indicator panels, RGB LED drivers, or simple LED chaser circuits for visual feedback systems.
- Logic Gate Experimentation: Wire up basic AND, OR, NOT, NAND, and XOR gates using
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your 170 Point Breadboard today and start building your next project.
