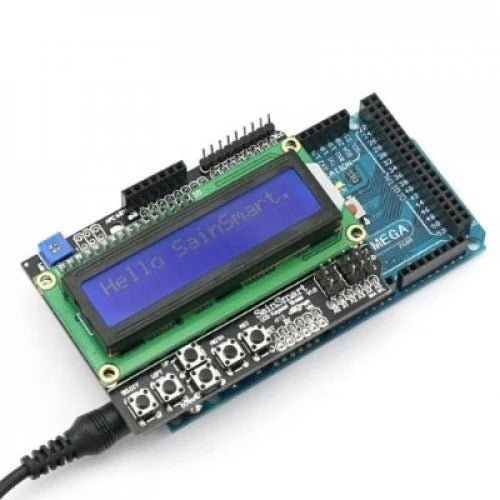

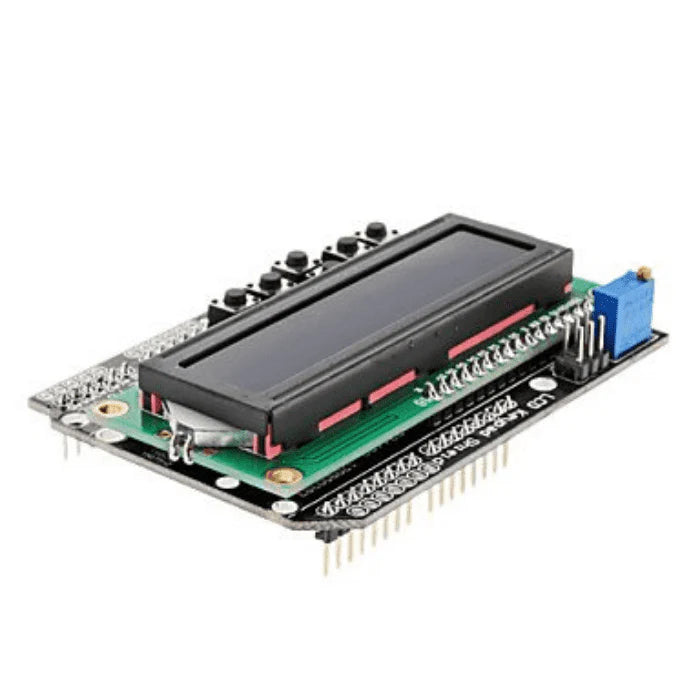

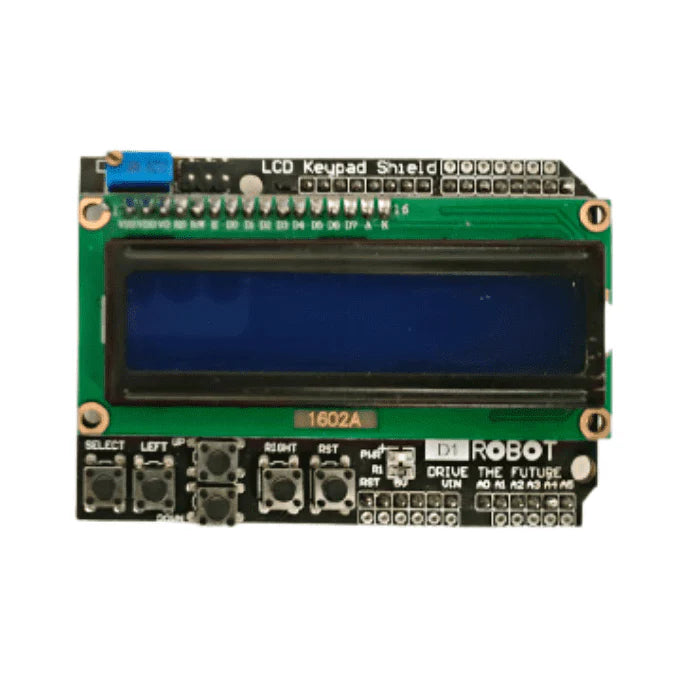

1602 LCD Board Keypad Shield for Arduino

All-in-one display and input solution from The Tech Depot, Bengaluru. This 1602 LCD Keypad Shield plugs directly onto your Arduino UNO/Mega, providing a crisp 16x2 character LCD display and 6 tactile push buttons for easy menu navigation - no messy wiring required. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.

Specifications

Display Type	16x2 Character LCD (HD44780 compatible)
Backlight	Blue backlight with white characters (adjustable via onboard potentiometer)
Interface	4-bit parallel mode (uses digital pins D4-D9)
Buttons	6 momentary push buttons - Select, Left, Right, Up, Down, Reset
Button Input	Single analog pin A0 (resistor ladder network)
Contrast Adjustment	Onboard trimpot for LCD contrast tuning
Operating Voltage	5V (powered directly from Arduino)
Compatibility	Arduino UNO, Mega 2560, Leonardo, and compatible boards
Form Factor	Plug-in shield - stackable headers for additional shields
Display Characters	32 characters (16 columns x 2 rows)
Library Support	Arduino LiquidCrystal library (pre-configured pin mapping)
Dimensions	Approximately 80mm x 58mm
Origin	Original/Authentic
Warranty	7-day warranty on manufacturing defects
Support	Email & WhatsApp 24/7

Why Choose the 1602 LCD Keypad Shield?

Zero-wiring setup: Simply plug the shield onto your Arduino - no breadboard, no jumper wires, no soldering needed
Built-in navigation buttons: Five directional buttons plus Reset on a single analog pin, leaving other I/O pins free for your project
Adjustable contrast & backlight: Onboard potentiometer lets you fine-tune display clarity for any lighting environment
Efficient pin usage: Buttons share one analog pin (A0) via resistor ladder; LCD uses only 6 digital pins, maximizing available I/O
Instant library compatibility: Works out of the box with Arduino's built-in LiquidCrystal library - upload example code and see results in seconds
Stackable design: Pass-through headers allow you to stack additional shields on top for expanded functionality
100% authentic from trusted suppliers with 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse
Expert technical support included with every purchase

Pin Mapping Reference

LCD RS	Digital Pin 8
LCD Enable	Digital Pin 9
LCD D4	Digital Pin 4
LCD D5	Digital Pin 5
LCD D6	Digital Pin 6
LCD D7	Digital Pin 7
Buttons (All)	Analog Pin A0
Backlight Control	Digital Pin 10

Project Ideas

Interactive Menu System: Build multi-level menus for configuring settings, selecting modes, or adjusting parameters using the 5 navigation buttons and LCD feedback.
Temperature & Humidity Monitor: Connect a DHT11/DHT22 or LM35 sensor and display real-time environmental readings with min/max tracking on the LCD.
Digital Clock & Alarm: Pair with an RTC module (DS1307/DS3231) to create a desktop clock with configurable alarms set via the onboard buttons.
Home Automation Controller: Use as a local control panel for relays, fans, and lights - display status and toggle devices with button presses.
pH/TDS Water Quality Tester: Connect analog water quality sensors and display calibrated readings for aquarium, hydroponics, or lab use.
Countdown Timer & Stopwatch: Build a precision timer for kitchen, lab, or sports applications with start/stop/reset controlled by the shield buttons.
Learning & Education: Ideal first shield for Arduino beginners - teaches LCD interfacing, analog reading, button debouncing, and menu programming.

Quick Start Code

Upload this sketch to your Arduino to verify the shield is working:

#include <LiquidCrystal.h>

LiquidCrystal lcd(8, 9, 4, 5, 6, 7);

void setup() {
 lcd.begin(
