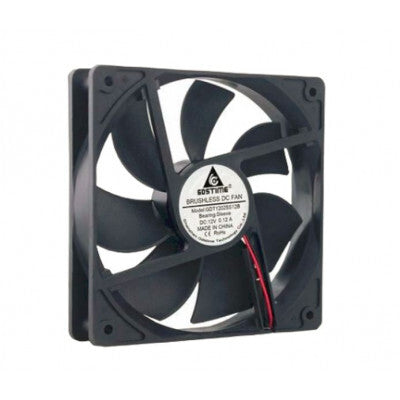

12V DC Fan - 120mm (12025) Brushless Cooling Fan [High Quality]
![12V DC Fan - 120mm (12025) Brushless Cooling Fan [High Quality]](http://techdepot.in/cdn/shop/files/2cb5bfbf5cce58b3b7a8710e2fcc653d.jpg?v=1778107772&width=3840)
12V DC Fan - 120mm (12025) Brushless Cooling Fan [High Quality]
12V DC Fan - 120mm (12025) Brushless Cooling Fan [High Quality]
High-performance 120mm brushless DC cooling fan from The Tech Depot, Bengaluru. Engineered for quiet, reliable airflow in electronics enclosures, 3D printers, power supplies, server racks, and DIY cooling projects. Ball or sleeve bearing design ensures long operational life with minimal maintenance. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Fan Size | 120mm x 120mm x 25mm (12025) |
| Operating Voltage | 12V DC (Range: 7V-13.8V) |
| Rated Current | ~0.15A - 0.30A (typical) |
| Power Consumption | ~1.8W - 3.6W |
| Motor Type | Brushless DC (BLDC) |
| Speed | ~1200-2000 RPM (model dependent) |
| Airflow | ~45-80 CFM |
| Noise Level | ~20-35 dBA |
| Connector | 2-Pin (standard), bare leads available |
| Mounting Holes | 4 corner holes, 104.8mm spacing (standard) |
| Bearing Type | Sleeve / Ball Bearing |
| Lifespan | ~30,000-50,000 hours |
| Frame Material | PBT Thermoplastic (UL94V-0) |
| Blade Material | PBT Thermoplastic |
| Weight | ~120-150g |
| Operating Temperature | -10 degreesC to +70 degreesC |
| Protection Features | Locked rotor protection, reverse polarity protection |
| Origin | Original / Authentic High-Quality Component |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Brushless DC Motor: Eliminates brush wear for significantly longer lifespan, lower electrical noise, and higher energy efficiency compared to brushed alternatives
- Standard 120mm Form Factor: Universal 12025 sizing fits standard PC cases, server enclosures, electrical panels, and custom fabricated housings without modification
- Low Noise Operation: Aerodynamically optimized blade design and balanced rotor deliver effective cooling at whisper-quiet noise levels, suitable for noise-sensitive environments
- High Airflow Output: Moves substantial air volume for effective heat dissipation from power electronics, processors, voltage regulators, and enclosed components
- Wide Voltage Tolerance: Operates reliably across 7V-13.8V range, allowing speed adjustment via voltage regulation or PWM for customized airflow and noise profiles
- Durable Construction: UL94V-0 rated thermoplastic frame and blades resist heat deformation and meet fire-retardancy standards for safe use in electronic equipment
- Easy Installation: Four standard corner mounting holes with 104.8mm spacing accept M4 screws or standard fan mounting hardware; plug-and-play 2-pin connector
- Long Operational Life: Rated for 30,000-50,000+ hours of continuous operation, reducing maintenance cycles and replacement costs
Why Choose This Fan?
- 100% authentic high-quality brushless fan sourced from trusted and verified suppliers
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse; same-day delivery available in Bengaluru
- Expert technical support included - get help with wiring, PWM control, airflow calculations, and integration
- Ideal balance of performance, noise, and price for both hobbyist and professional applications
- Extensively tested for reliability in continuous-duty cooling scenarios
Project Ideas & Applications
- 3D Printer Cooling: Mount as an enclosure exhaust fan or electronics bay cooler to maintain optimal operating temperatures for your printer's mainboard, stepper drivers, and power supply
- PC & Server Cooling: Use as a case intake or exhaust fan in desktop computers, home servers, NAS builds, and mining rigs for consistent thermal management
- Electronics Enclosure Ventilation: Install in control panels, electrical cabinets, amplifier enclosures, and rack-mounted equipment to prevent thermal throttling and component degradation
- DIY Power Supply Projects: Cool high-current bench power supplies, battery chargers, and voltage converter builds to ensure safe, reliable operation under load
- Incubator & Chamber Projects: Circulate air uniformly inside DIY egg incubators, plant growth chambers, drying cabinets, and curing ovens for consistent temperature distribution
- Ventilation & Fume Extraction: Build compact fume extract
