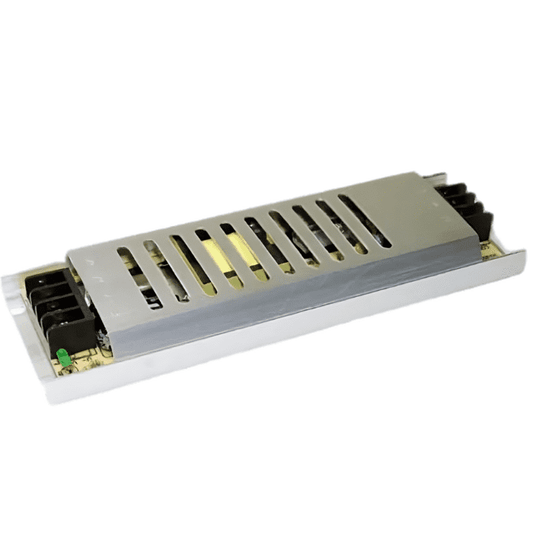

12V 5A SMPS (Switched Mode Power Supply - 60W)
Reliable and efficient 12V 5A Switch Mode Power Supply (SMPS) delivering a stable 60W output for LED strips, CCTV cameras, robotics, and industrial automation projects. Compact metal-cased design with built-in overload, short-circuit, and over-voltage protection. Available at The Tech Depot, Bengaluru - fast shipping, 7-day warranty on manufacturing defects, and expert support.
Specifications
| Product Type | Switched Mode Power Supply (SMPS) |
| Output Voltage | DC 12V |
| Output Current | 5A (Max) |
| Output Power | 60W |
| Input Voltage | AC 110V-240V (Universal Input), 50/60Hz |
| Regulation Type | Switched Mode (High-Frequency Switching) |
| Efficiency | >=85% |
| Output Ripple & Noise | <=120mV (Typical) |
| Protection Features | Overload / Short Circuit / Over-Voltage Protection (OLP/SCP/OVP) |
| Cooling | Natural Convection (Fanless up to 60W) |
| Casing Material | Perforated Metal Enclosure (Aluminium/Steel) |
| Mounting | Screw-mount holes for panel/chassis mounting |
| Output Terminals | Screw Terminal Block (V+, V, COM/GND) |
| Input Connection | AC terminal block (L, N, Earth/GND) |
| LED Indicator | Green power-on LED |
| Operating Temperature | 10 degreesC to +50 degreesC |
| Humidity | 20%-90% RH (Non-condensing) |
| Dimensions (Approx.) | 115 x 78 x 36 mm (L x W x H) |
| Weight (Approx.) | ~180g |
| Certifications | CE / FCC (Typical for class) |
| MTBF | >=50,000 Hours |
| Origin | Original / Authentic Quality-Checked Unit |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Key Features
- Stable 12V DC Output at 5A: Clean, regulated DC power with low ripple - ideal for sensitive electronics, LED drivers, and microcontroller-based systems.
- Universal AC Input (110V-240V): Works directly with Indian 230V mains as well as international voltages without any selector switch - true universal operation.
- High Efficiency (>=85%): Switched-mode topology minimises heat generation and energy waste compared to bulky linear power supplies.
- Triple Protection Built-In: Overload protection (OLP), short-circuit protection (SCP), and over-voltage protection (OVP) safeguard both the supply and your connected equipment.
- Compact Metal Enclosure: Perforated aluminium/steel casing provides effective heat dissipation, electromagnetic shielding, and mechanical durability in a small form factor.
- Fanless Silent Operation: Natural convection cooling at 60W means zero noise - perfect for CCTV installations, home automation panels, and quiet lab environments.
- Easy Screw Terminal Connections: No soldering required - secure AC input and DC output via labelled screw terminal blocks for quick, tool-based wiring.
- Panel & Chassis Mountable: Pre-drilled mounting holes allow secure installation inside enclosures, control panels, or project boxes.
- Power-On LED Indicator: Green LED confirms active output at a glance for quick diagnostics.
- Long Service Life: MTBF of 50,000+ hours ensures dependable performance in continuous-duty applications.
Why Choose This 12V 5A SMPS?
- 100% Authentic & Quality-Checked: Every unit is sourced from trusted suppliers and inspected before dispatch - no counterfeit or recycled components.
- Perfect Power-to-Size Ratio: 60W in a palm-sized package replaces heavy, inefficient transformer-based adapters.
- Versatile Workhorse: One supply powers LED strips, motors, Arduino/Raspberry Pi setups, CCTV systems, access control hardware, and more.
- Safe for Continuous Use: Built-in protections and thermal design allow 24/7 operation in real-world conditions.
- Fast 1-5 days shipping: Ships from our Bengaluru
