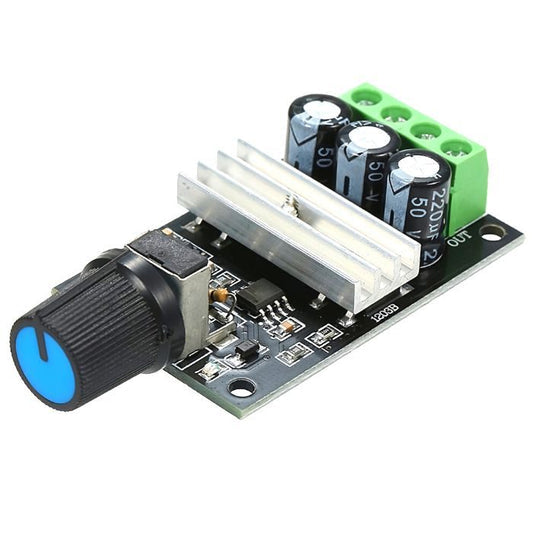

1203B PWM DC Motor Speed Controller Module
1203B PWM DC Motor Speed Controller Module
Shipping calculated at checkout.
1203B PWM DC Motor Speed Controller Module
Take precise control of your DC motors with the 1203B PWM Speed Controller Module. This compact, efficient module uses Pulse Width Modulation to deliver smooth, stepless speed regulation for small to medium DC motors - ideal for robotics, fan control, LED dimming, and countless DIY automation projects. Available now from Tech Depot India, Bengaluru with fast shipping and full technical support.
Specifications
| Module Model | 1203B PWM DC Motor Speed Controller |
| Input Voltage Range | DC 6V - 28V |
| Maximum Output Current | 3A (continuous) |
| PWM Frequency | ~20 kHz (inaudible range) |
| Duty Cycle Range | 0% - 100% (full speed range) |
| Speed Adjustment | Onboard potentiometer knob (stepless) |
| Control Method | Pulse Width Modulation (PWM) |
| Efficiency | High (minimal heat generation) |
| Board Dimensions | Approx. 25mm x 15mm (compact form factor) |
| Mounting | PCB with screw terminal / solder pads |
| Connector Type | Screw terminals for motor and power input |
| Operating Temperature | -10 degreesC to +60 degreesC |
| Type | Motor Driver / Speed Controller Module |
| Origin | Original/Authentic |
| Warranty | |
| Support | Email & WhatsApp reliable |
Key Features
- Wide Voltage Compatibility: Operates from 6V to 28V DC, supporting a broad range of motor voltages including 6V, 9V, 12V, and 24V systems.
- Smooth Stepless Speed Control: Onboard potentiometer provides continuous 0-100% duty cycle adjustment for precise, jitter-free motor speed regulation.
- High-Frequency PWM (~20 kHz): Operates above the audible range, eliminating annoying motor whine and ensuring silent operation.
- 3A Continuous Current Handling: Capable of driving small to medium DC motors, fans, pumps, and LED strips without external drivers.
- Ultra-Compact PCB Design: Tiny footprint makes it easy to embed inside enclosures, project boxes, or tight spaces in robotic assemblies.
- High Efficiency with Low Heat: PWM switching design minimizes power loss compared to resistive speed control, keeping the module cool during extended operation.
- Easy Screw Terminal Connections: No soldering required for basic setups - simply connect power supply and motor via screw terminals.
- Reverse Polarity Awareness: Simple two-wire interface reduces wiring errors; clearly labeled input/output terminals.
Why Choose the 1203B PWM Motor Speed Controller?
- 100% Authentic: Sourced from trusted, verified suppliers - guaranteed genuine components and reliable performance.
- Beginner-Friendly: Simple hookup with just power supply and motor - no programming, microcontroller, or complex wiring needed.
- Versatile Application Range: Works with brushed DC motors, cooling fans, water pumps, LED strips, and other resistive/inductive DC loads.
- Energy Efficient: PWM control means your motor only draws the power it needs at any given speed, saving energy and extending battery life in portable projects.
- Expert Technical Support: Our engineering team is available reliable via email and WhatsApp to help with wiring, troubleshooting, and project integration.
Project Ideas
- Robotics Speed Control: Regulate wheel motor speeds for differential-drive robots, line followers, or obstacle-avoiding bots with precise throttle control.
- Variable-Speed Cooling Fan: Build a temperature-responsive or manually adjustable fan system for 3D printer enclosures, electronics cooling, or workbench ventilation.
- LED Brightness Dimmer: Use the PWM output to smoothly dim 12V or 24V LED strips for ambient lighting, photography setups, or display signage.
- Mini Water Pump Controller: Adjust flow rates in hydroponic systems, aquarium filters, or DIY water cooling loops by varying pump speed.
- Model Train & RC Speed Regulation: Integrate into model railway layouts or RC vehicles for realistic, smooth acceleration and deceleration.
- Conveyor Belt Prototyping: Control conveyor belt speed in small-scale automation and industrial prototyping projects.
- Educational Motor Labs: Demonstrate PWM principles, duty cycle effects, and motor characteristics in physics and electronics classrooms.
- Battery-
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
