1/4 Inch Water Flow Sensor YF - S402
1/4 Inch Water Flow Sensor YF - S402
1/4 Inch Water Flow Sensor YF-S402
Product Overview

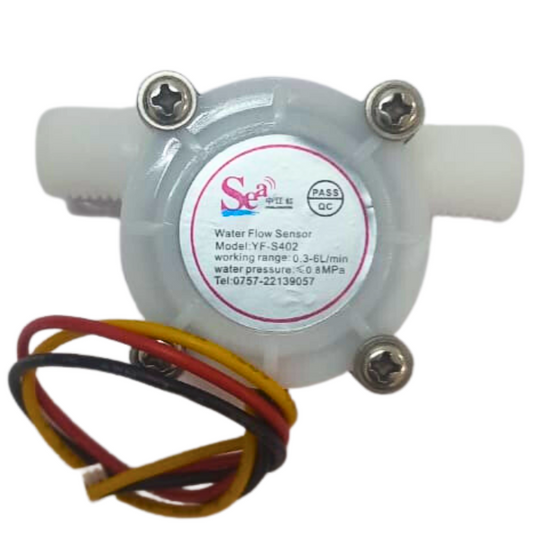

The YF-S402 is a precision water flow sensor designed for accurate fluid measurement in compact applications. This 1/4 inch flow meter is ideal for projects requiring reliable water flow detection and monitoring.
Key Specifications
| Feature | Details |
| Sensor Type | Hall Effect Flow Sensor |
| Pipe Diameter | 1/4 Inch (6mm) |
| Flow Range | 0.3 - 6 L/min |
| Operating Pressure | 0 - 0.8 MPa |
| Operating Temperature | 0 - 80 degreesC |
| Output Signal | Digital Pulse |
| Accuracy | +/-3-5% |
| Material | Plastic Body with Stainless Steel Rotor |
| Connection Type | G1/4 Thread |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | 24/7 Email & WhatsApp |
Why Choose YF-S402?
Highly Accurate - Precise flow measurement for critical applications
Compact Design - Fits easily into tight spaces
Durable Construction - Stainless steel components for longevity
Easy Integration - Simple digital pulse output for microcontroller projects
Cost-Effective - Affordable precision sensor solution
100% Authentic - Sourced from trusted authorized distributors
Fast Delivery - 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
Expert Support - Full technical assistance included
Applications
DIY & Hobbyist Projects
- Arduino/Raspberry Pi water monitoring systems
- Smart irrigation controllers
- Aquarium flow monitoring
Industrial & Commercial
- Water dispensing systems
- HVAC cooling loops
- Chemical dosing systems
- Fuel flow measurement
Educational
- IoT and embedded systems learning
- Sensor integration projects
- Environmental monitoring experiments
Technical Features
- Hall Effect Technology - Non-contact, reliable pulse generation
- Low Power Consumption - Ideal for battery-powered applications
- Wide Flow Range - Suitable for various flow rates (0.3-6 L/min)
- Temperature Stable - Consistent performance across operating range
- Easy Calibration - Linear output for straightforward calculations
What's Included
In the Box:
- 1x YF-S402 Water Flow Sensor
- Connection cables/connectors
- Technical documentation & datasheet
- Installation guide
- Support materials
How It Works
The YF-S402 uses a Hall Effect sensor to detect the rotation of an internal rotor as water flows through it. Each complete rotation generates a digital pulse, allowing you to calculate flow rate by counting pulses over time.
Formula: Flow Rate (L/min) = Pulse Frequency (Hz) / Calibration Factor (typically 5.5 Hz per L/min)
Installation Guide
- Prepare Connection - Ensure 1/4" thread compatibility
- Install Sensor - Use thread sealant tape for leak-proof connection
- Connect Output - Attach signal wires to microcontroller input pin
- Power Supply - Typical 5V operation (check datasheet)
- Calibration - Configure pulse-to-flow-rate conversion in your code
Frequently Asked Questions
Is this sensor 100% authentic?
Yes, absolutely. We source directly from authorized distributors with full authentication verification. Each unit comes with original packaging and documentation.
What's the warranty coverage?
7-day warranty on manufacturing defects covering all manufacturing defects. We also offer a 7-day replacement guarantee for defective units.
How quickly will it ship?
1-5 business days to most locations in India from our Bengaluru warehouse. Express shipping available on request.
Can I use this with Arduino/Raspberry Pi?
Yes! The digital pulse output is compatible with any microcontroller. We provide code examples and integration guides with your purchase.
What's the maximum flow rate it can measure?
The YF-S402 is rated for 0.3 - 6 L/min. For higher flow rates, consider the YF-S201 or YF-S303 variants.
Do you offer technical support?
Yes, complete 24/7 technical support via email and WhatsApp. Our engineers can help with installation, calibration, and integration.
What's your return policy?
7-day returns on manufacturing defects only with full refund or replacement. Unopened items accepted within 30 days.
Are bulk/wholesale discounts available?
Yes! Orders of 10+ units qualify for special wholesale pricing. Contact us for a custom quote.
Is calibration required?
No calibration needed out of the box. The sensor comes pre-calibrated. Use the standard conversion factor (5.5 Hz per L/min) in your calculations.
